Home >> GMC >> 2001 >> Safari Van 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Connector Views >> A/T Related Connector End Views >> Transmission Range Switch Connector, Wiring Harness Side

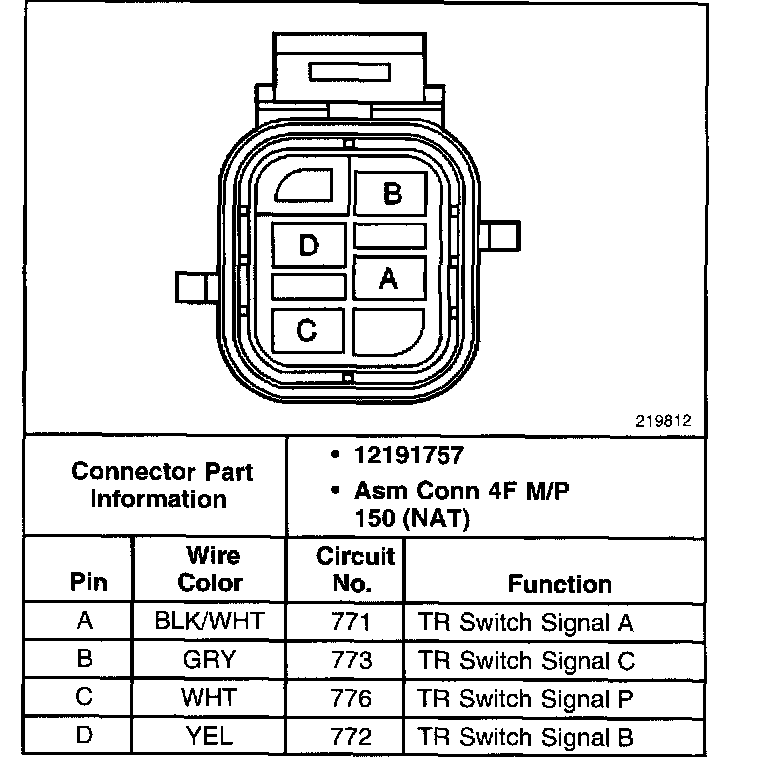

Transmission Range Switch Connector, Wiring Harness Side
