Fuel Filler Neck: Service and Repair

Fuel Tank Filler Pipe Housing Replacement

Removal Procedure

1. Remove the fuel filler door. Refer to Fuel Tank Filler Door Replacement (Service and Repair).
2. Remove the fuel filler cap.

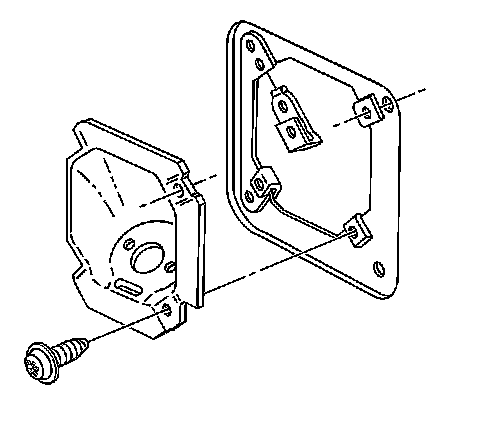

3. Remove the screws that retain the pocket to the fuel filler pipe.
4. Remove the screws that retain the fuel filler pocket to the body.




5. Remove the fuel filler pocket.

Installation Procedure




1. Install the fuel filler pocket.
2. Install the screws that retain the fuel filler pocket to the body.

Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the screws that retain the pocket to the fuel filler pipe.

Tighten the screws that retain the pocket to the fuel filler pipe to 2 Nm (18 lb.in.).

4. Install the fuel filler cap.
5. Install the fuel filler door. Refer to Fuel Tank Filler Door Replacement (Service and Repair).
