Fuel Hose/Pipes Assembly Replacement

REMOVAL PROCEDURE




1. Remove the fuel tank.

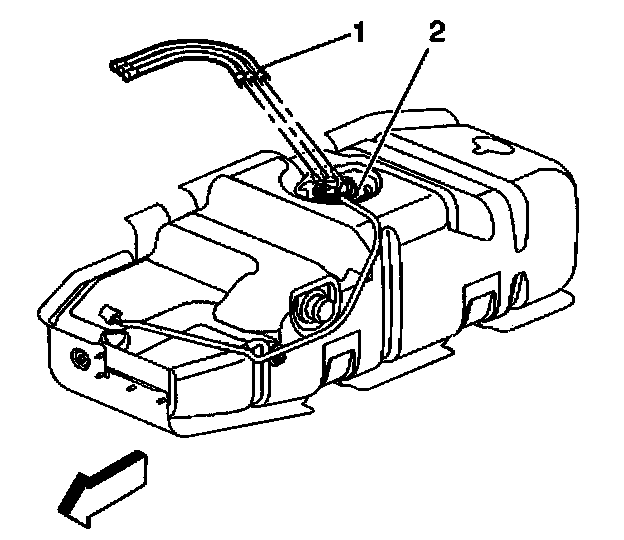

2. Remove the fuel pipes (1) from the fuel sender (2).

INSTALLATION PROCEDURE

CAUTION: Refer to Fuel Pipe Fitting Caution in Service Precautions.




1. Install fuel pipes (1) to the fuel sender (2).
2. Install the fuel tank.
