Canister Vent Valve: Service and Repair

EVAPORATIVE EMISSION (EVAP) CANISTER VENT VALVE REPLACEMENT

REMOVAL PROCEDURE




1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle.

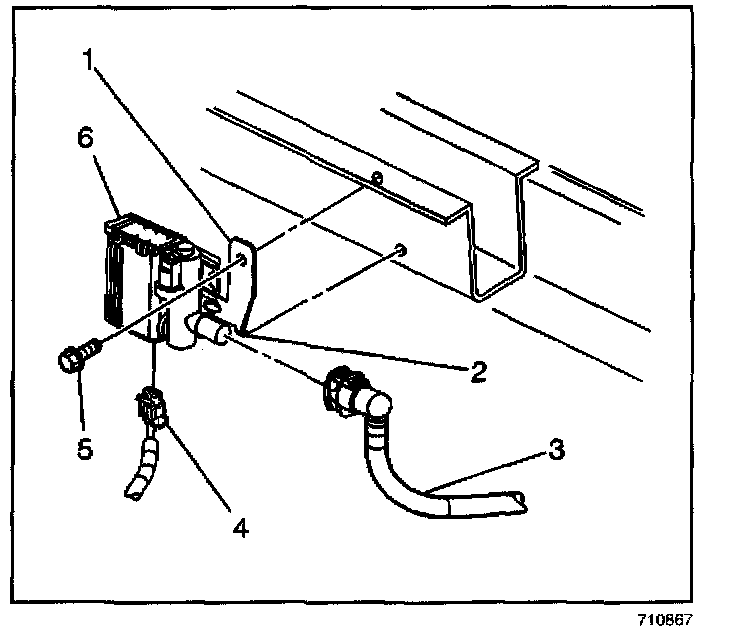

2. Remove the evaporative emission (EVAP) canister vent valve bracket bolt (5) from the vent valve bracket (1).
3. Disconnect the vent valve harness connector (4) from the vent valve (6).
4. Disconnect the vent pipe (3) from the vent valve (6).
5. Remove the vent valve.
6. Remove the vent valve from the bracket.

INSTALLATION PROCEDURE




1. Install the vent valve on the bracket.
2. Install the EVAP canister vent pipe (3) on the EVAP canister vent valve (6).
3. Connect the EVAP canister vent valve harness connector (4) to the EVAP canister vent valve.

NOTE: Refer to Fastener Notice in Service Precautions.

4. Install the EVAP canister vent valve bracket (1) and the vent valve bracket bolt (5).

Tighten
Tighten the retaining bolt to 10 N.m (89 lb in).

5. Lower the vehicle.
