Crankshaft Position Timing Ring: Service and Repair

Crankshaft Position (CKP) Reluctor Ring Replacement

Removal Procedure





1. Remove the engine front cover.

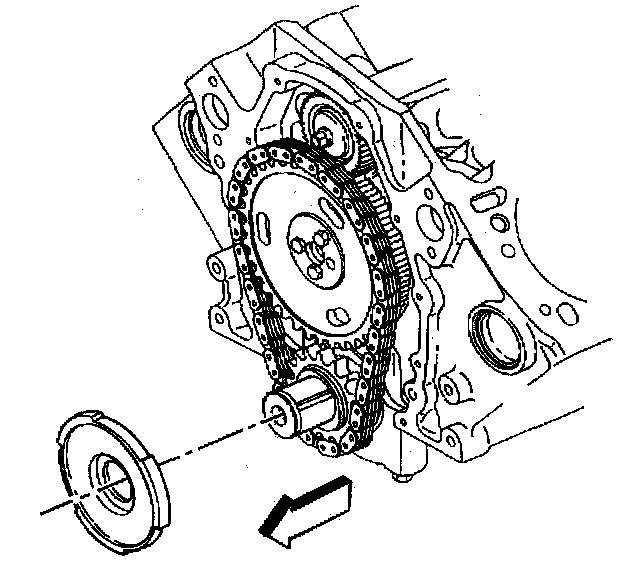

2. Remove the crankshaft position sensor reluctor ring.

Installation Procedure

Notice: Failure to properly align the crankshaft position sensor reluctor ring may result in component damage and effect OBD II system performance.

Important: The reluctor ring is shaped like a dish. The dish must face towards the engine front cover.





1. Install the crankshaft position sensor reluctor ring.
2. Install the engine front cover.
