Home >> GMC >> 2001 >> Safari Van 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Maintenance >> Drive Belt >> Diagrams

Drive Belt: Diagrams

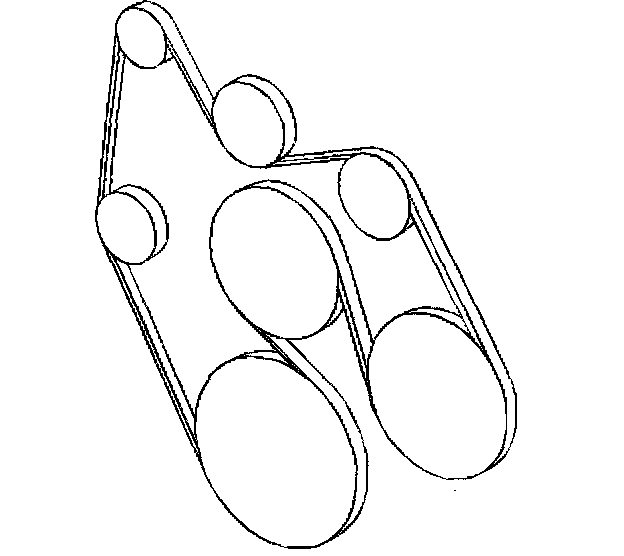

Drive Belt Routing For Vehicles Without Air Conditioning.

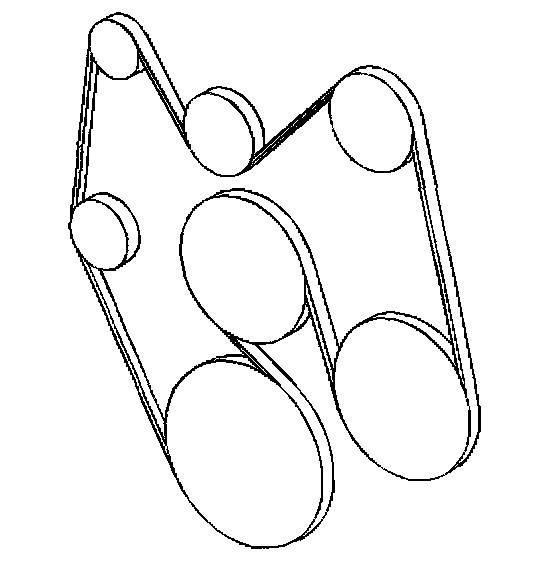

Drive Belt Routing For Vehicles With Air Conditioning.
