Home >> GMC >> 2001 >> Safari Van 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Locations >> Harness Locations >> Splice Pack, Relay Blocks, DLC Wiring

Splice Pack, Relay Blocks, DLC Wiring

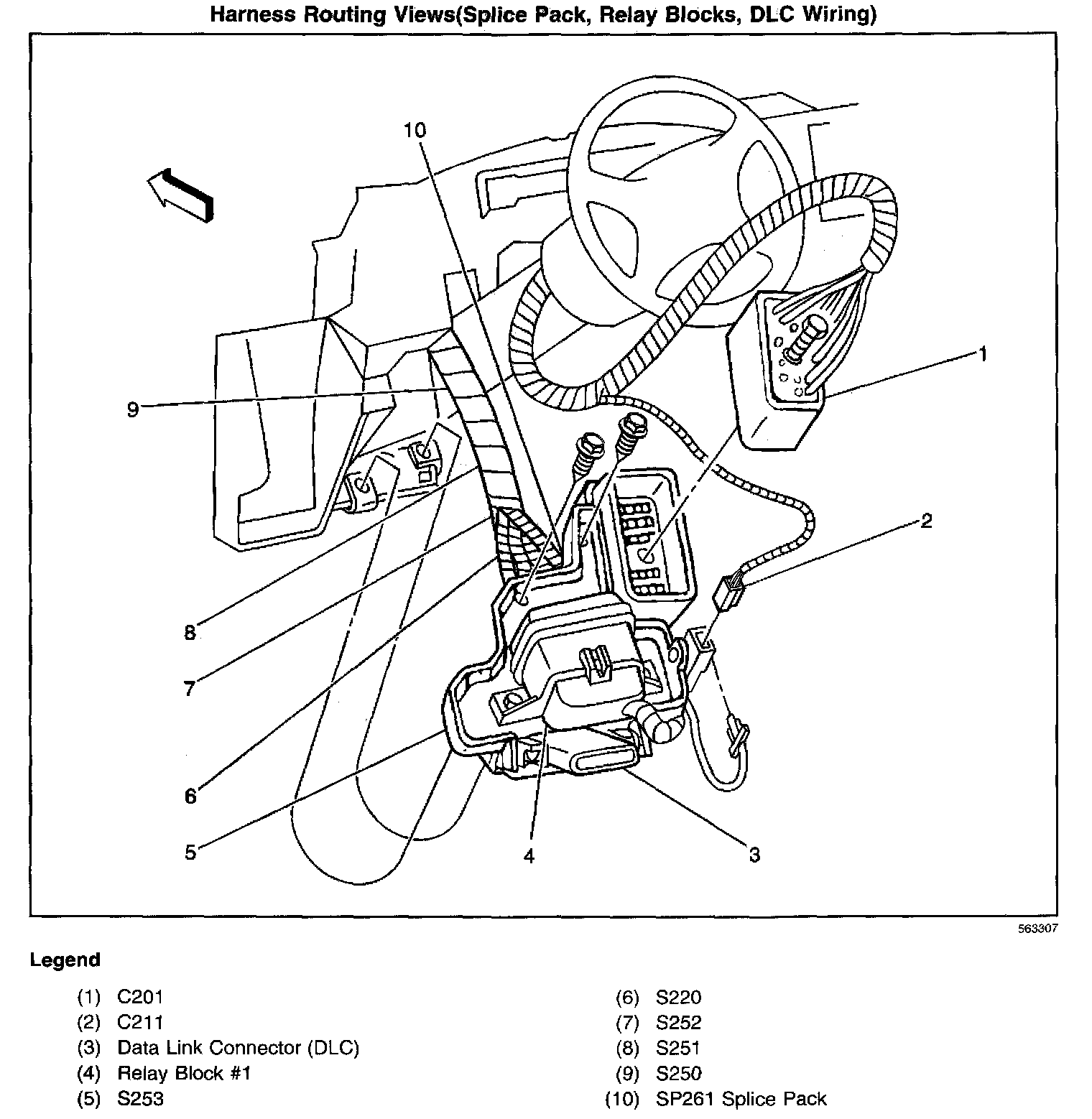

Harness Routing Views (Splice Pack, Relay Blocks, DLC Wiring):
