Home >> GMC >> 2001 >> Safari Van 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Locations >> Harness Locations >> IP Wiring, RH Side (Electrical)

IP Wiring, RH Side (Electrical)

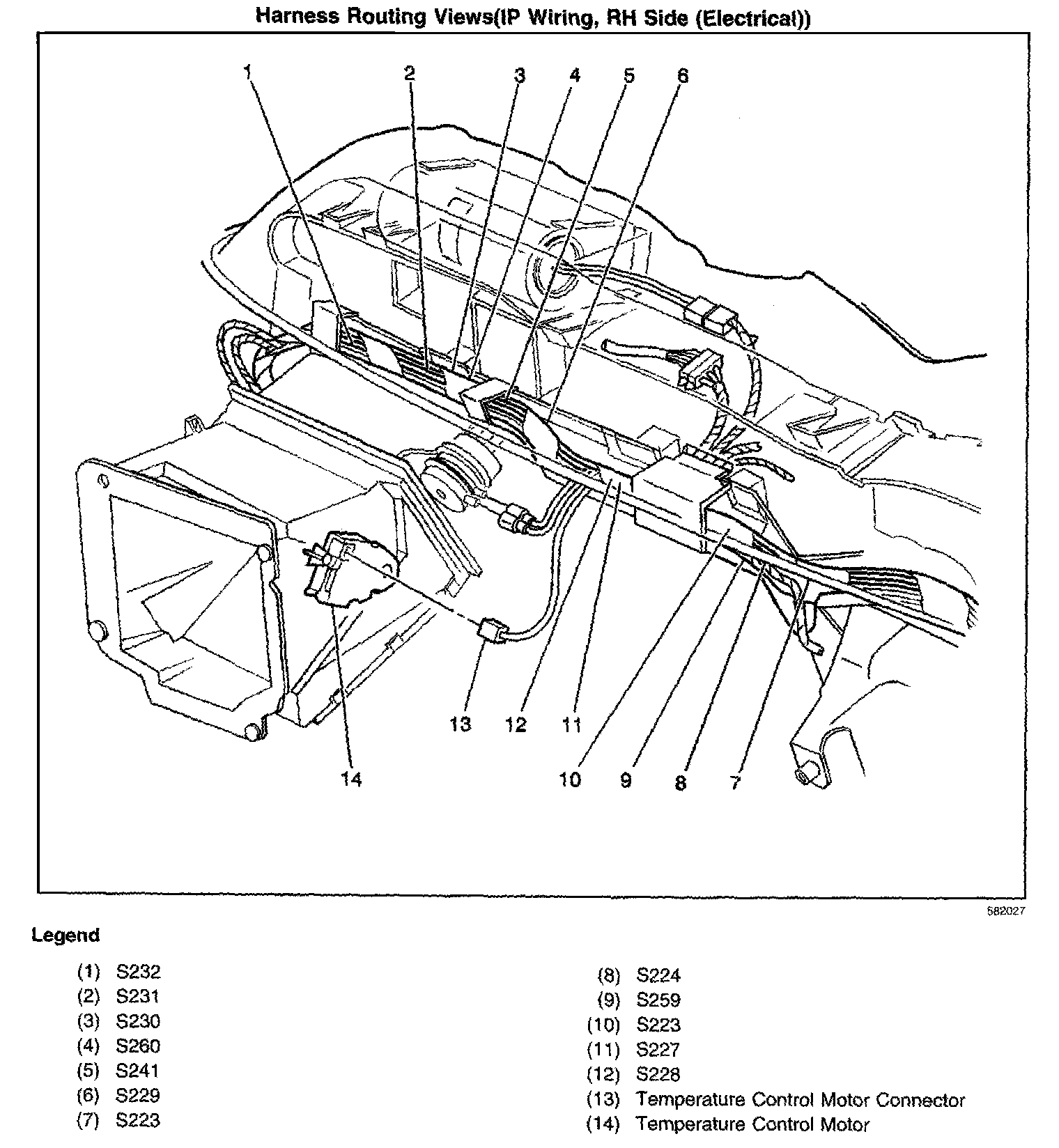

Harness Routing Views (IP Wiring, RH Side (Electrical)):
