Home >> GMC >> 2001 >> Safari Van 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Locations >> Component Locations >> Modules >> Body Control Module (BCM)

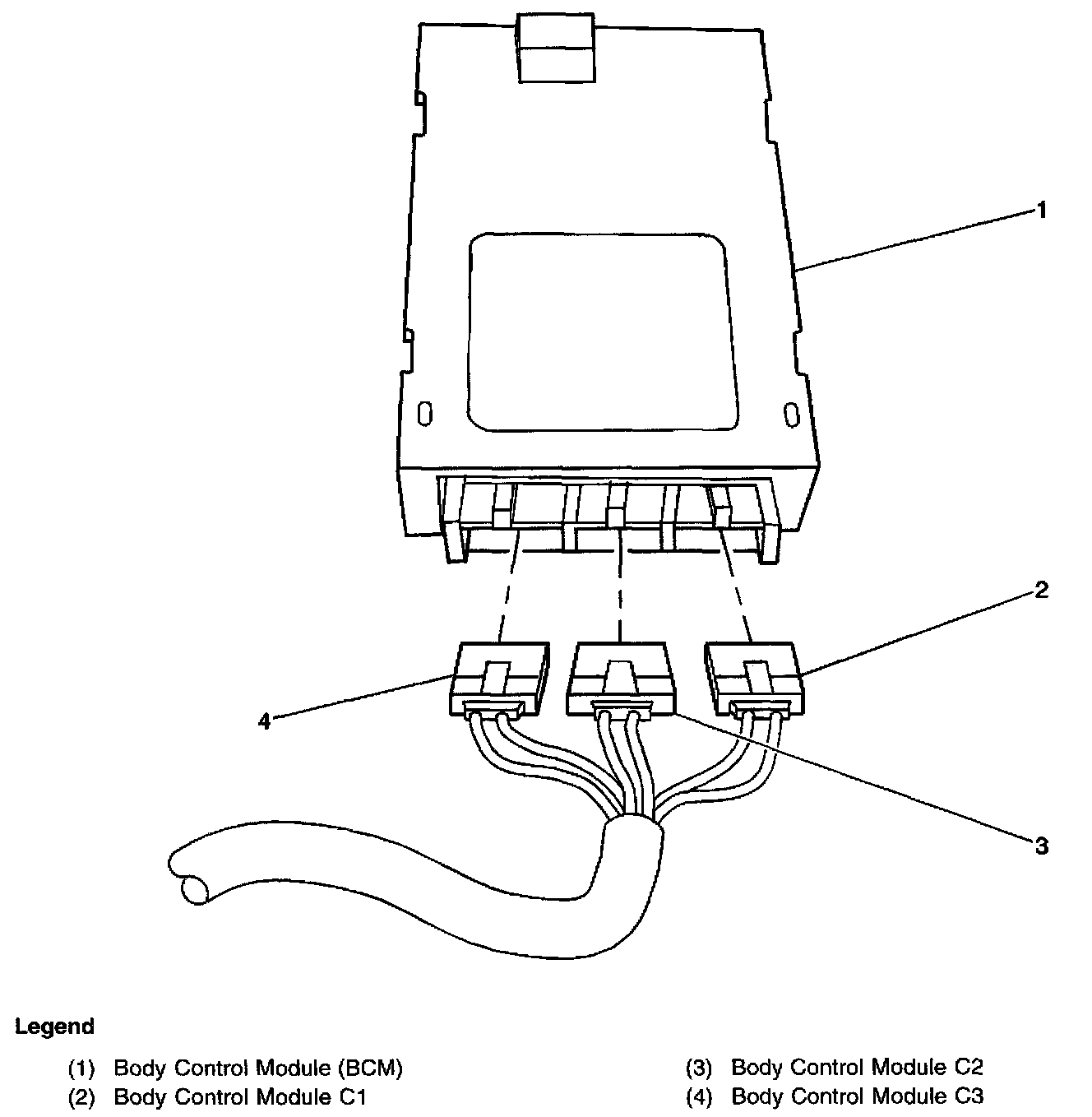

Body Control Module (BCM)

Locations View:




Locations View:

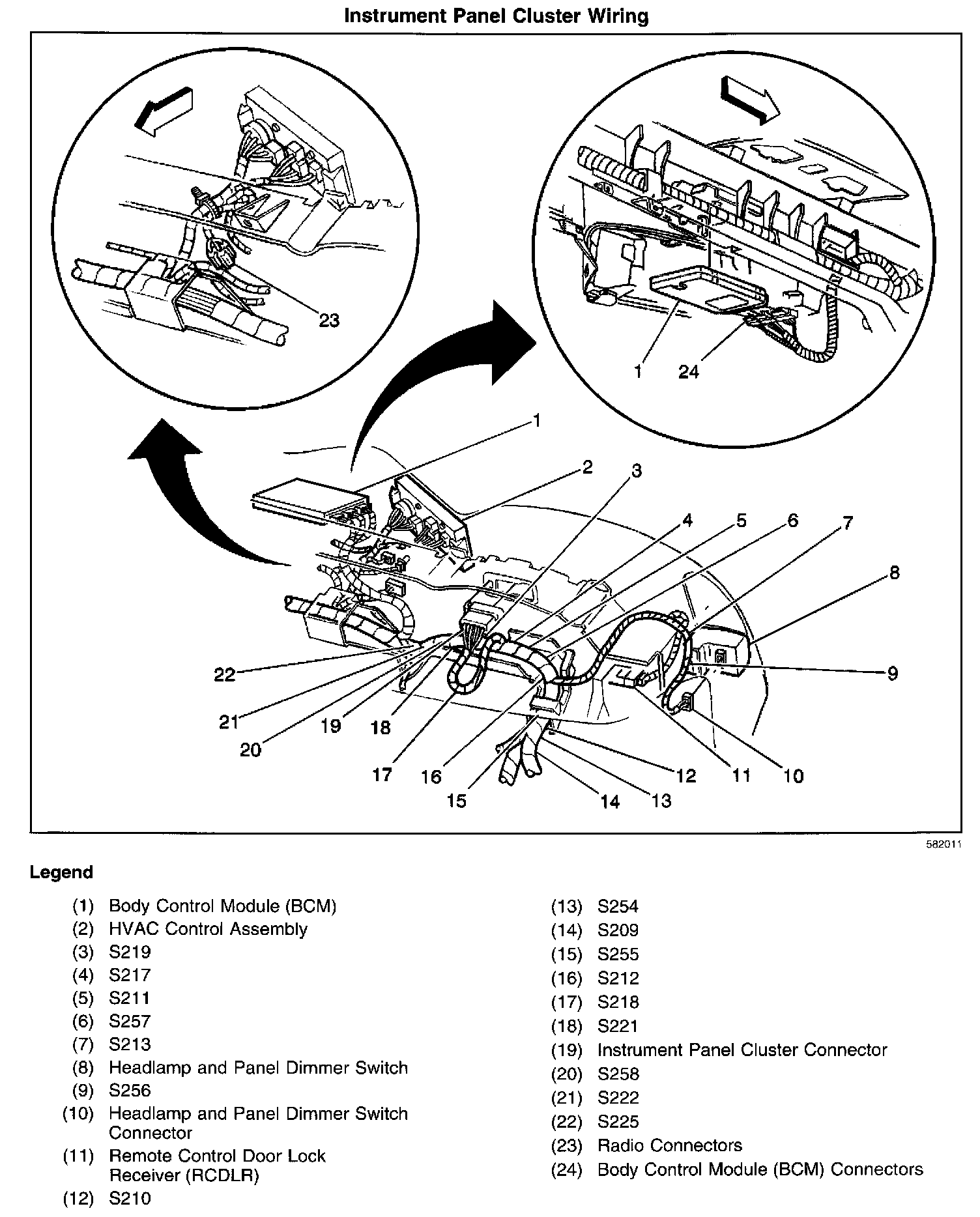

Inside the dash, above the radio
