Marker Lamp: Service and Repair

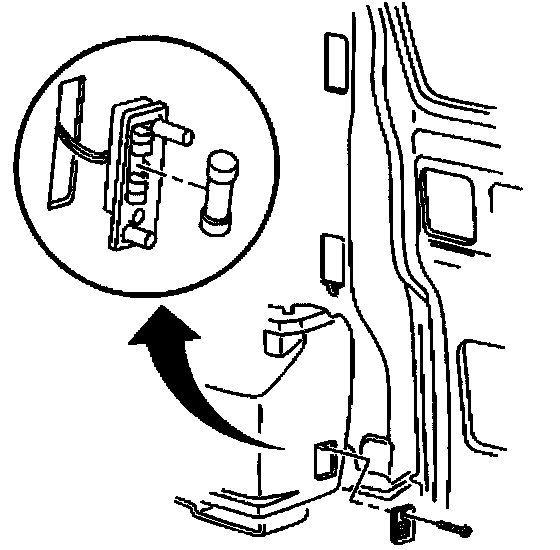

STEPWELL LAMP REPLACEMENT

REMOVAL PROCEDURE




1. Remove the screw that retains the lens.
2. Gently pry off the lens.
3. Pull out the bulb.

INSTALLATION PROCEDURE




1. Install the bulb.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the lens to the body with the screw.

Tighten
Tighten the stepwell lamp body screw to 2 N.m (18 lb in).
