Safari Van 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Marker Lamp
>>
Diagrams
>>
Connector Views
Connector Views

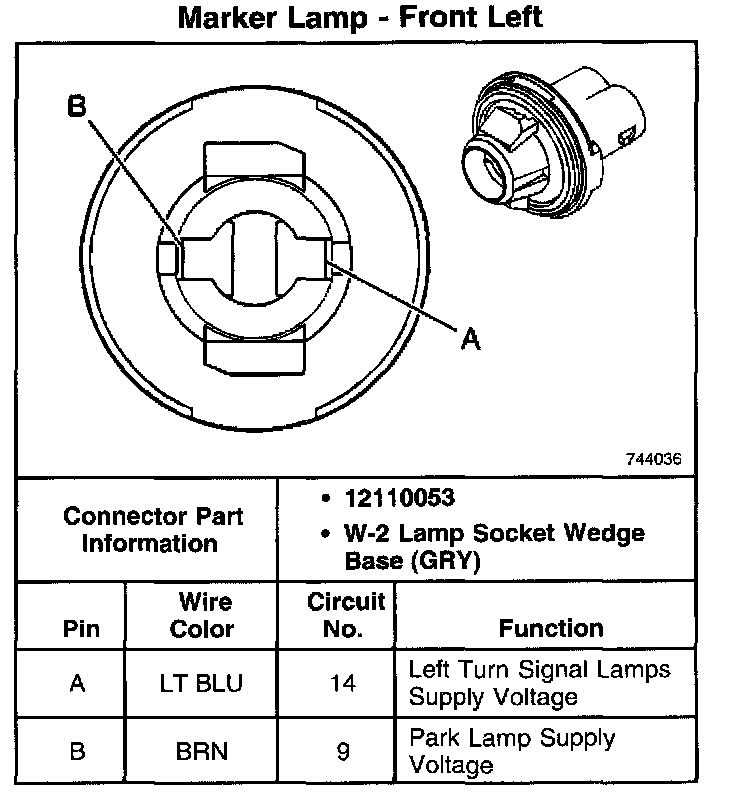

Marker Lamp - Front Left:

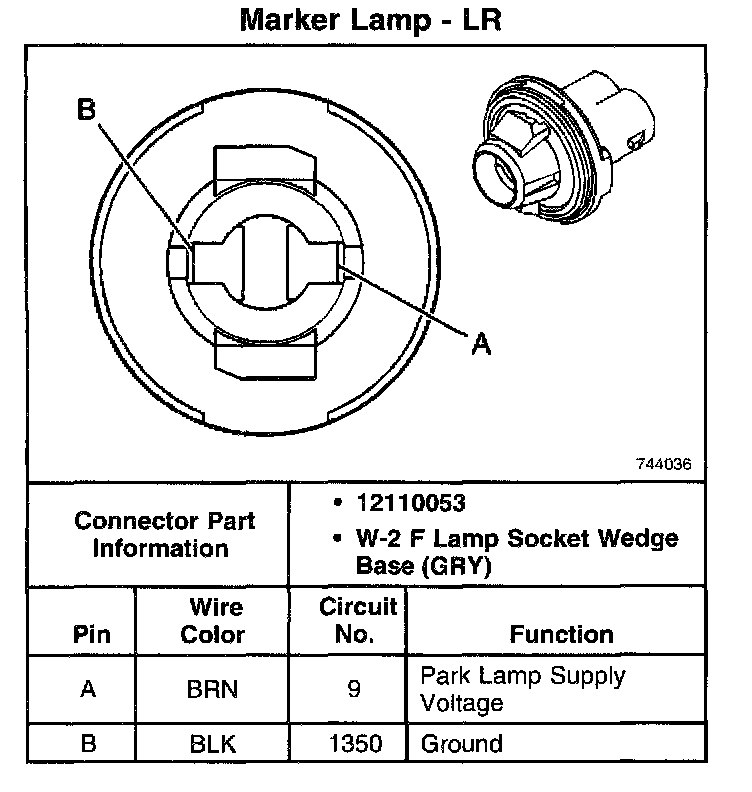

Marker Lamp - LR:

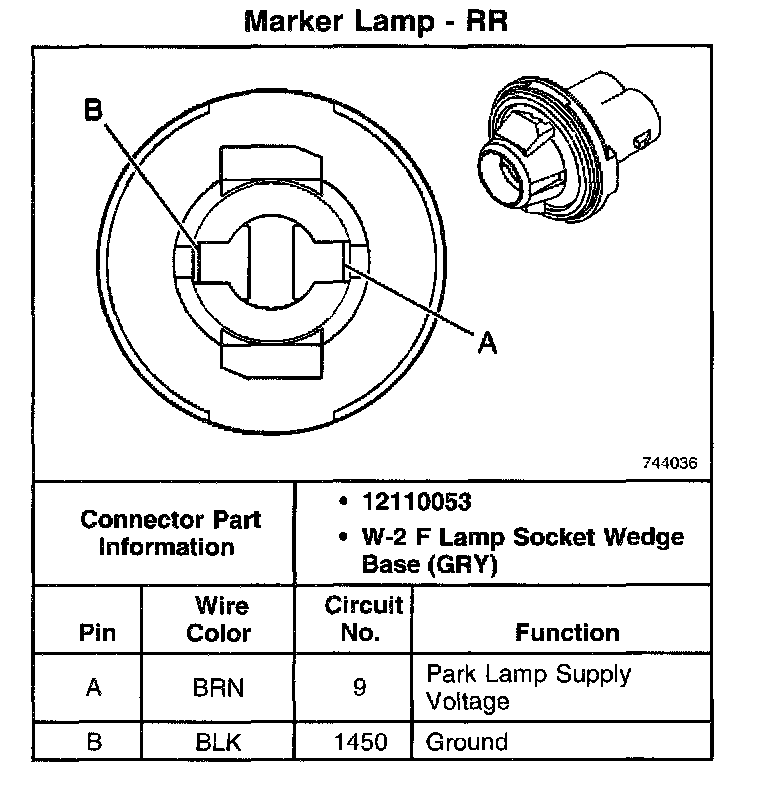

Marker Lamp - RR:
