Home >> GMC >> 2001 >> Safari Van 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Interior Lights >> Interior Lights Schematics >> Door Jamb Switches

Door Jamb Switches

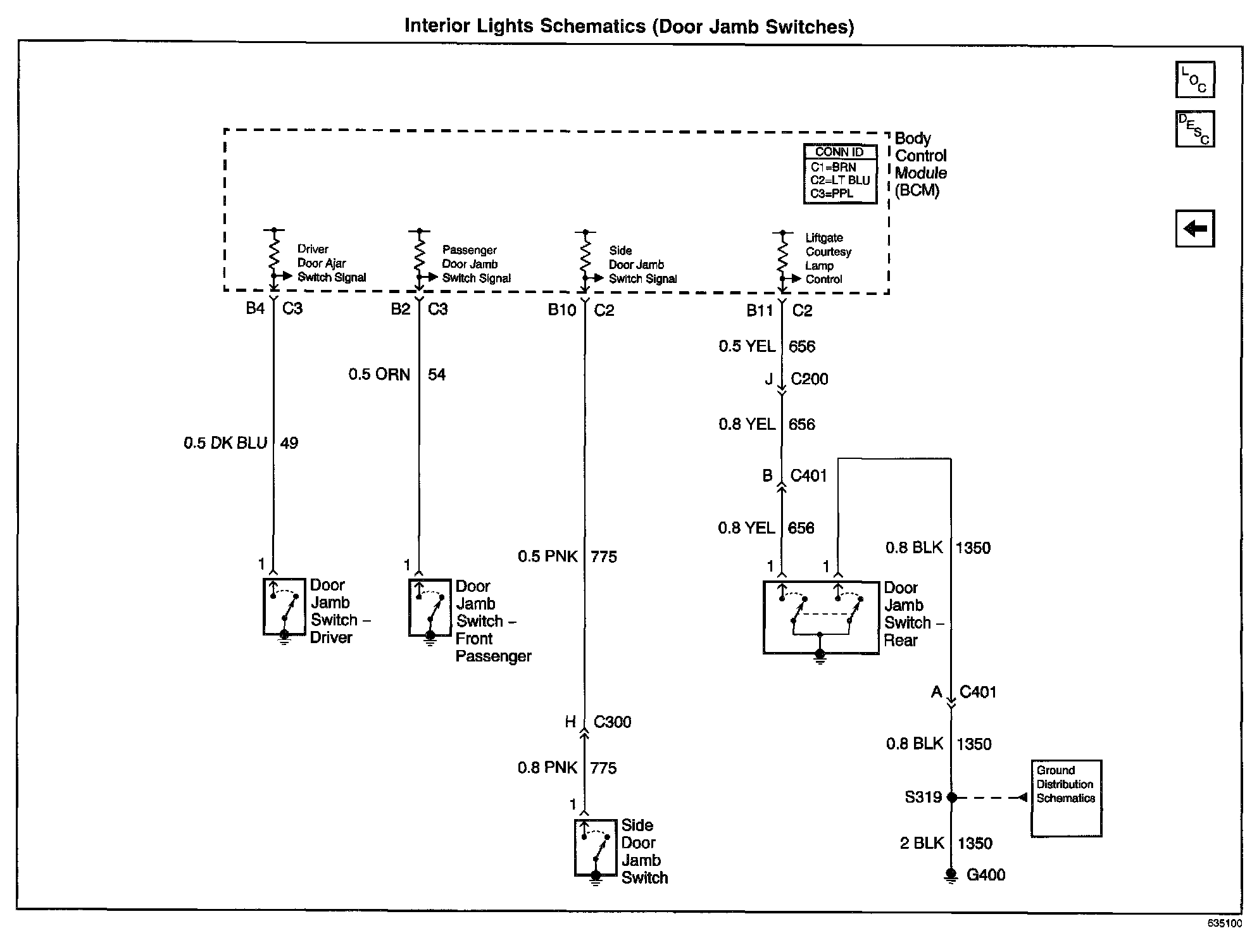

Interior Lights Schematics: Door Jamb Switches:
