DRL Relay and Diode D300

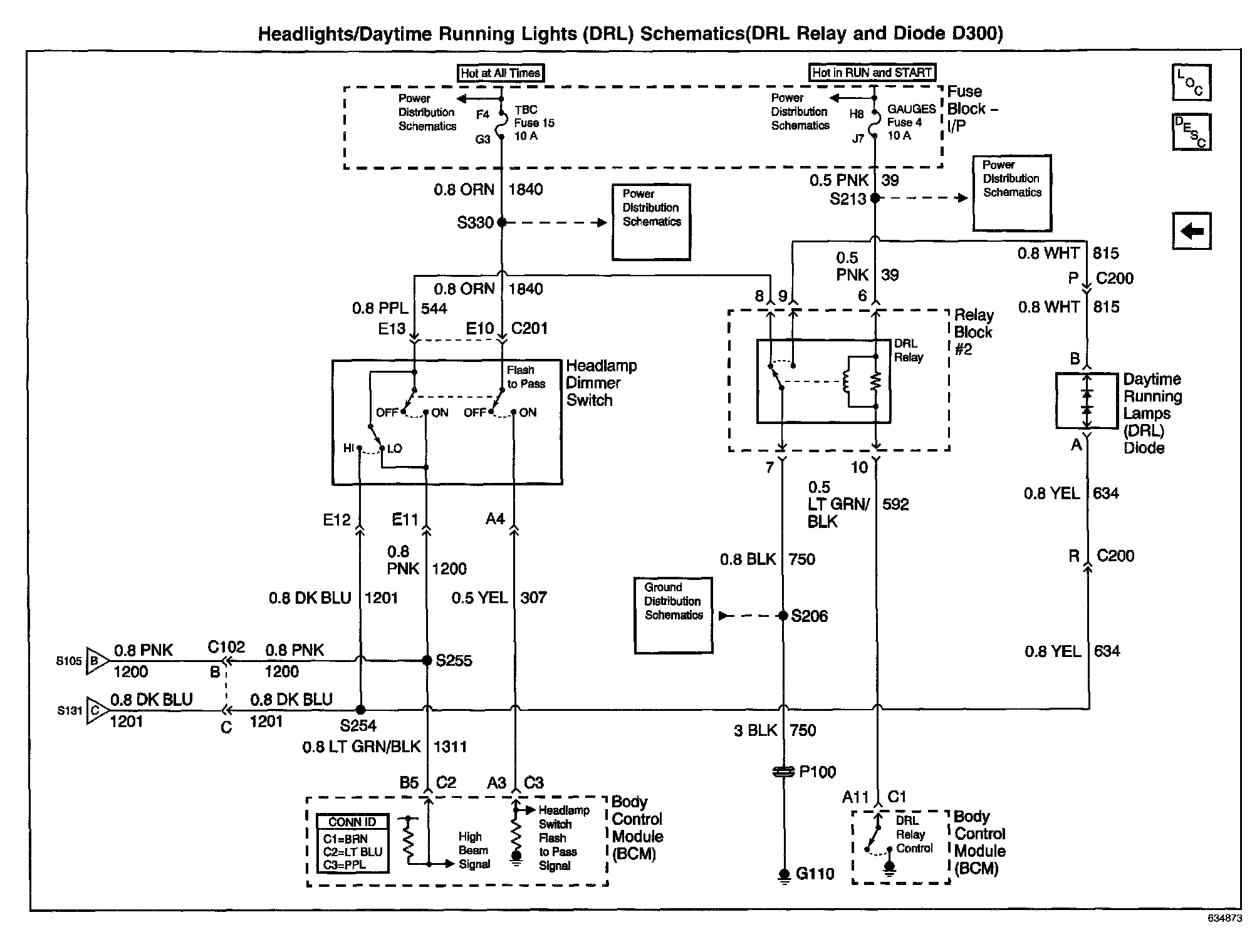

Headlights/Daytime Running Lights (DRL) Schematics: DRL Relay and Diode D300:
