Turn Indicators, Front Side Marker Lamps, Park/Turn Signal Lamps

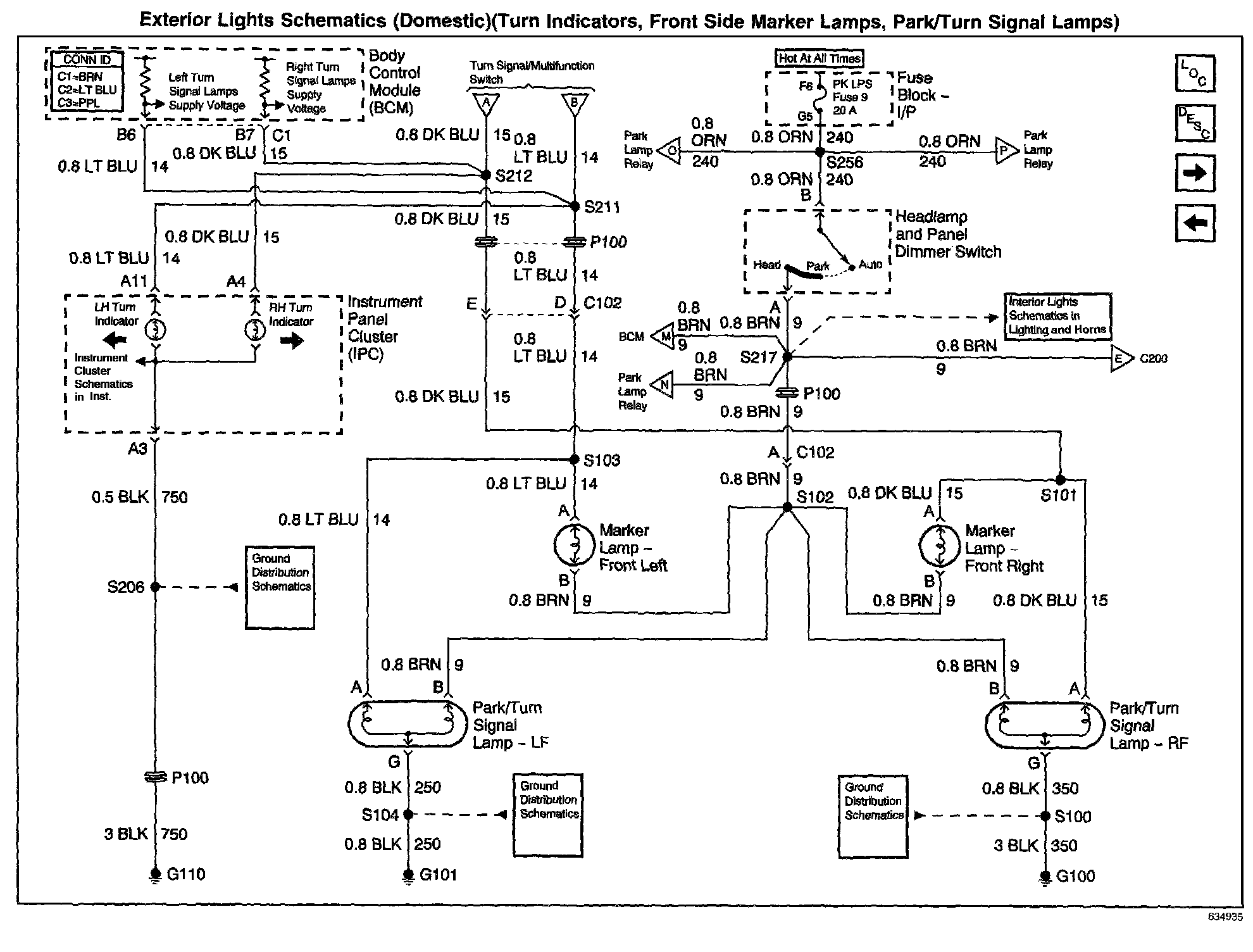

Exterior Lights Schematics: Domestic (Turn Indicators, Front Side Marker Lamps, Park/Turn Signal Lamps):
