Turn/Hazard Switch and Flasher Module

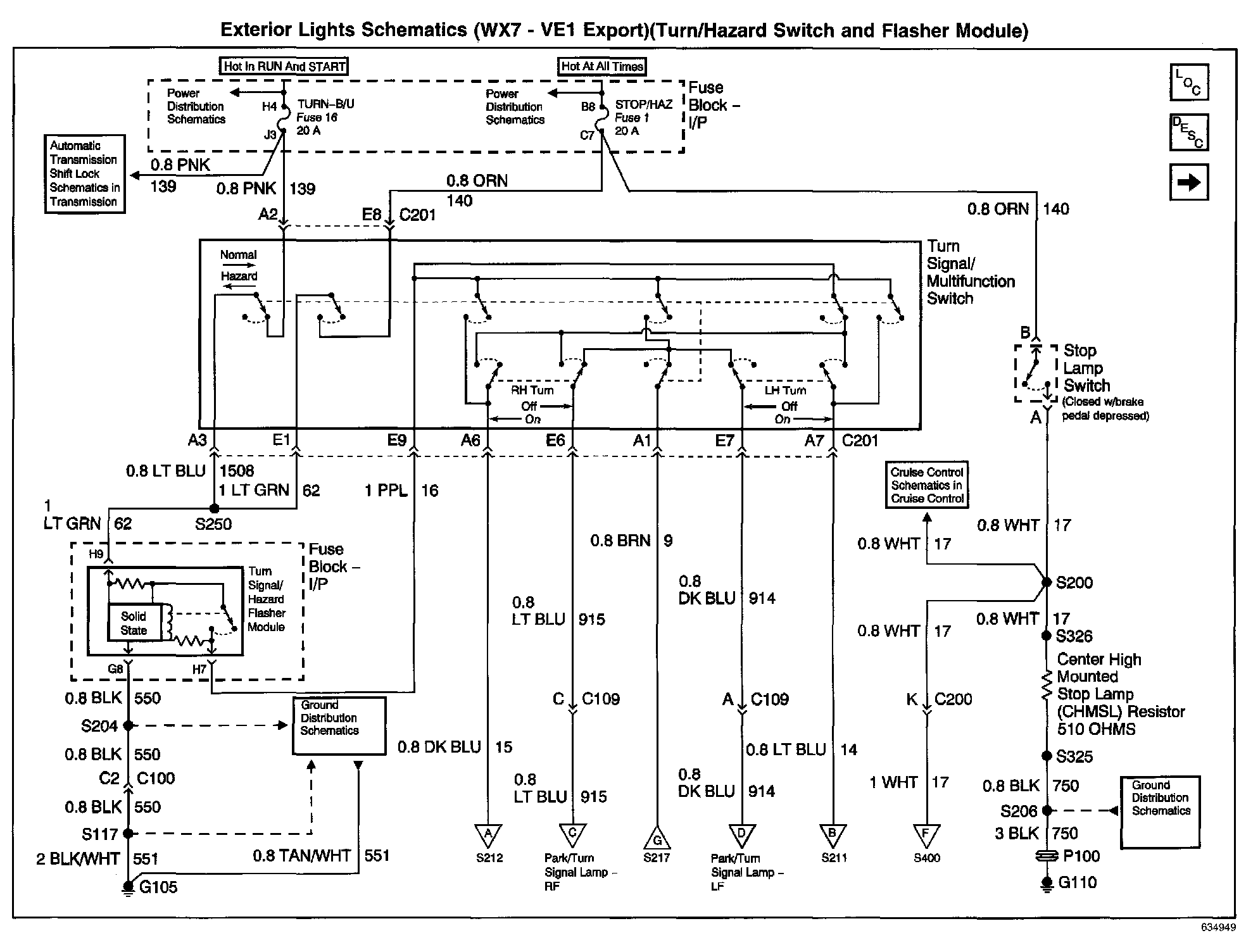

Exterior Lights Schematics: WX7 - VE1 Export (Turn/Hazard Switch and Flasher Module):





For a description of the RPO Code(s) shown in this article/images refer to the RPO Code List found at Vehicle/Application ID RPO Codes
