Courtesy Lamp
>>
Diagrams
>>
Connector Views
>>
Right Connector
Right Connector

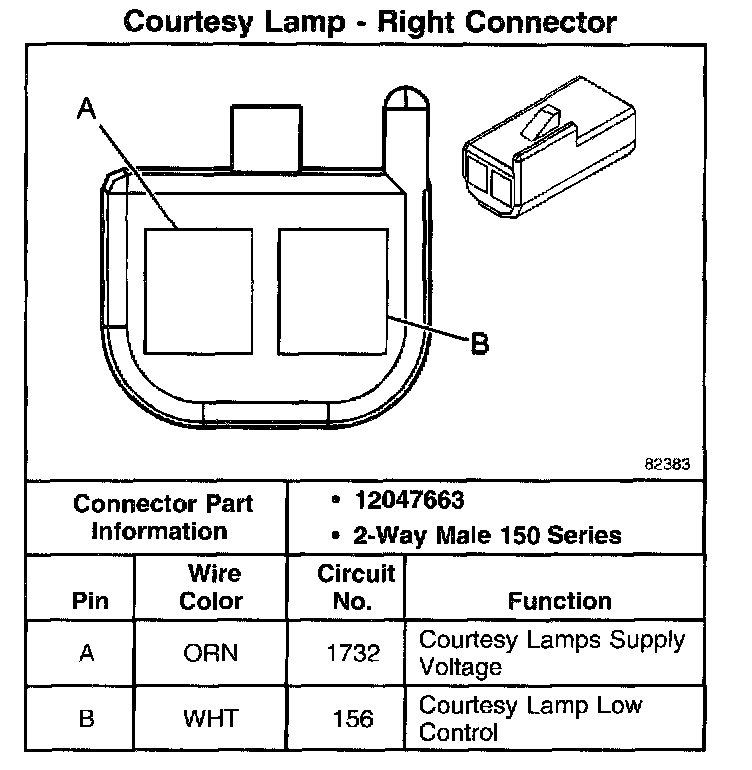

Courtesy Lamp - Right Connector:
