Safari Van 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Center Mounted Brake Lamp
>>
Diagrams
>>
Connector Views
Connector Views

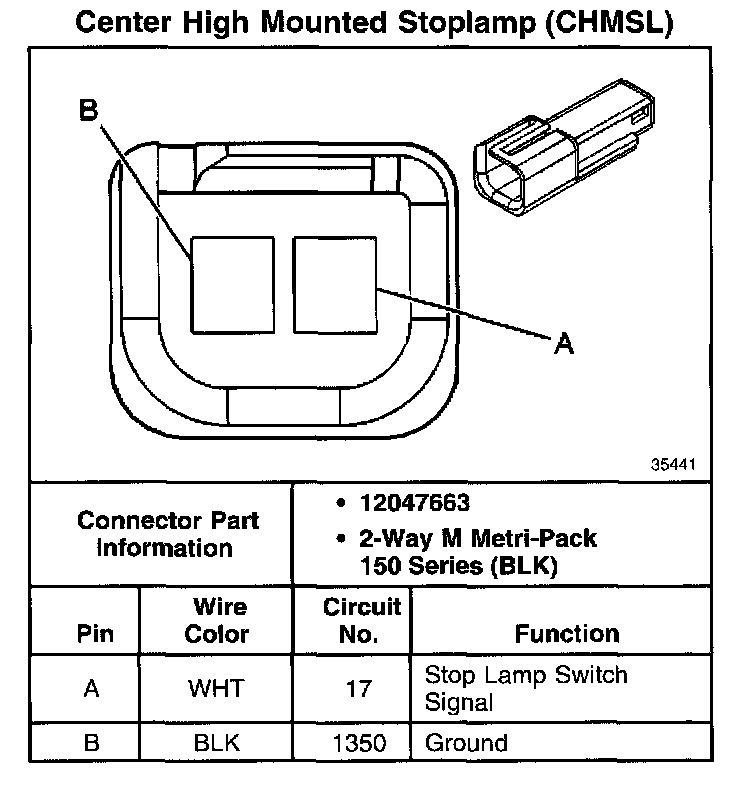

Center High Mounted Stoplamp (CHMSL):
