Temperature Display Always Reads OC

DIAGNOSTIC AIDS
^ The DIC displays OC when there is an open condition within the system.
^ For intermittent diagnosis, refer to Testing for Intermittent and Poor Connections in Diagrams.
^ Refer to Ambient Air Temperature Sensor Resistance in order to verify the correct ambient temperature sensor readings.

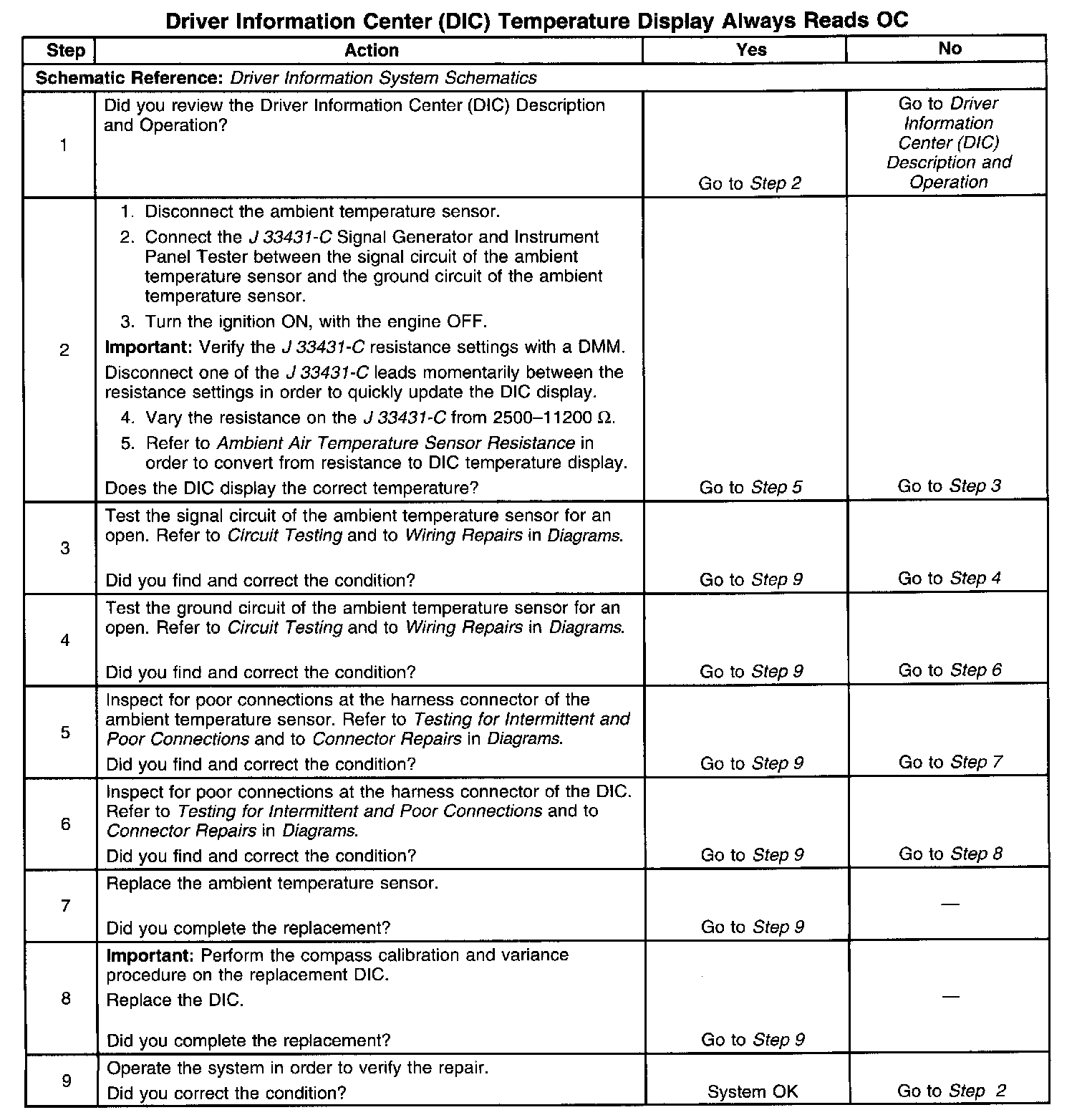

TEST DESCRIPTION

Steps 1-9:
