Instrument Panel (IP) - Insulator Replacement

Instrument Panel Insulator Replacement

Removal Procedure

1. Disable the SIR system. Refer to Disabling the SIR System in SIR.

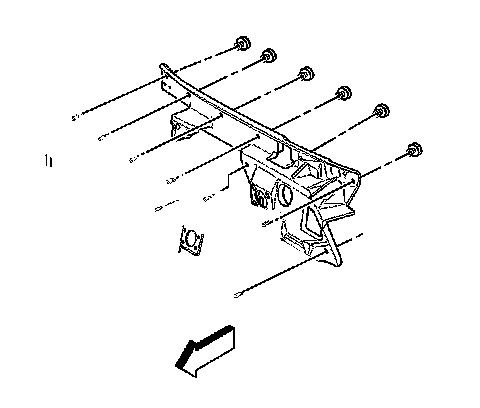

2. Remove the instrument panel carrier. Refer to Instrument Panel Carrier Replacement (Instrument Panel (IP) - Carrier Replacement).




3. Remove the insulator clips from the insulator pad.
4. Remove the insulator pad from the vehicle.

Installation Procedure

1. Install the insulator pad to the vehicle.




2. Install the insulator clips to the insulator pad.
3. Install the instrument panel carrier. Refer to Instrument Panel Carrier Replacement (Instrument Panel (IP) - Carrier Replacement).
4. Enable the SIR. Refer to Enabling the SIR System in SIR.
