Home >> GMC >> 2001 >> Safari Van 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Application and ID

Instrument Panel, Gauges and Warning Indicators: Application and ID

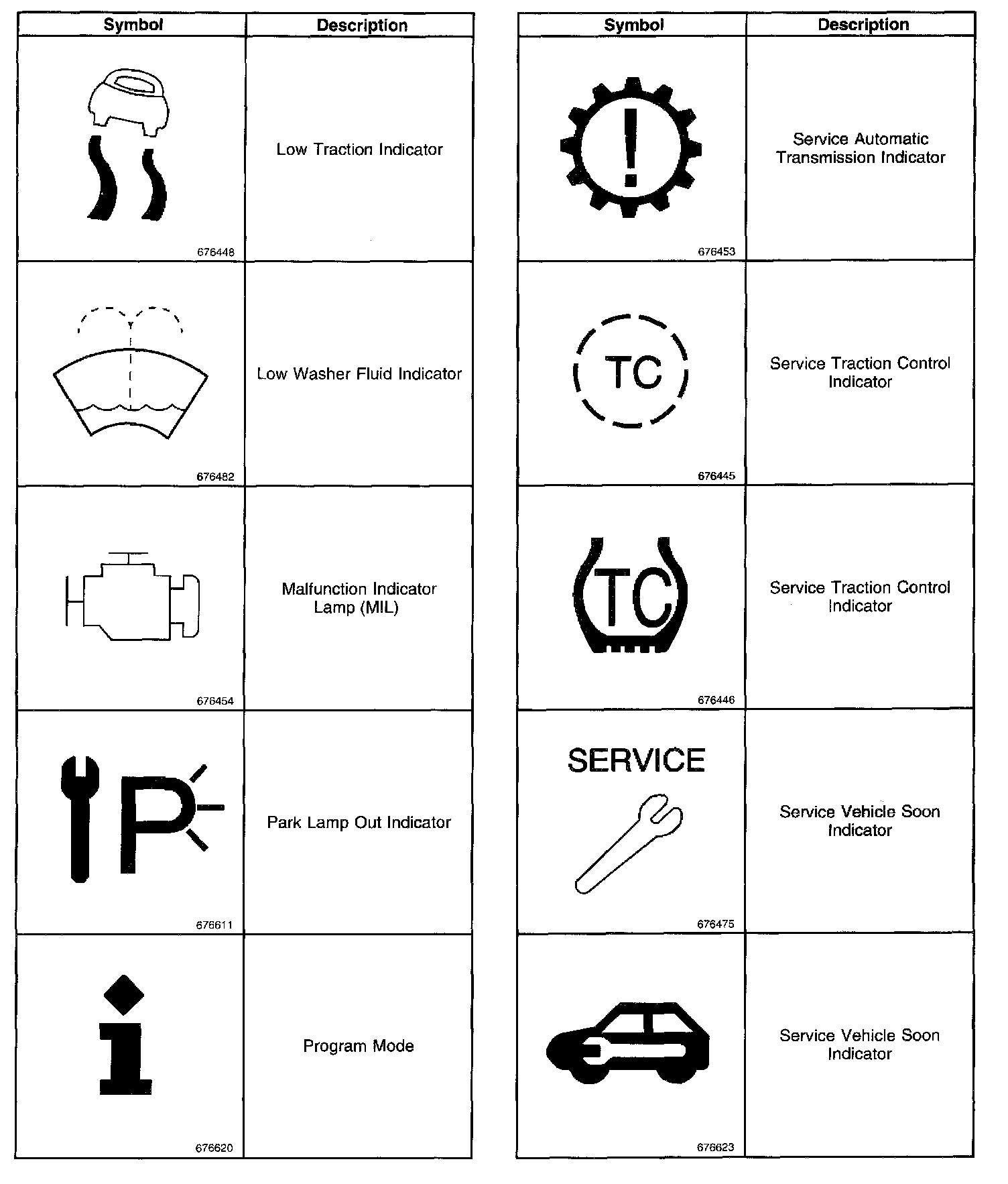

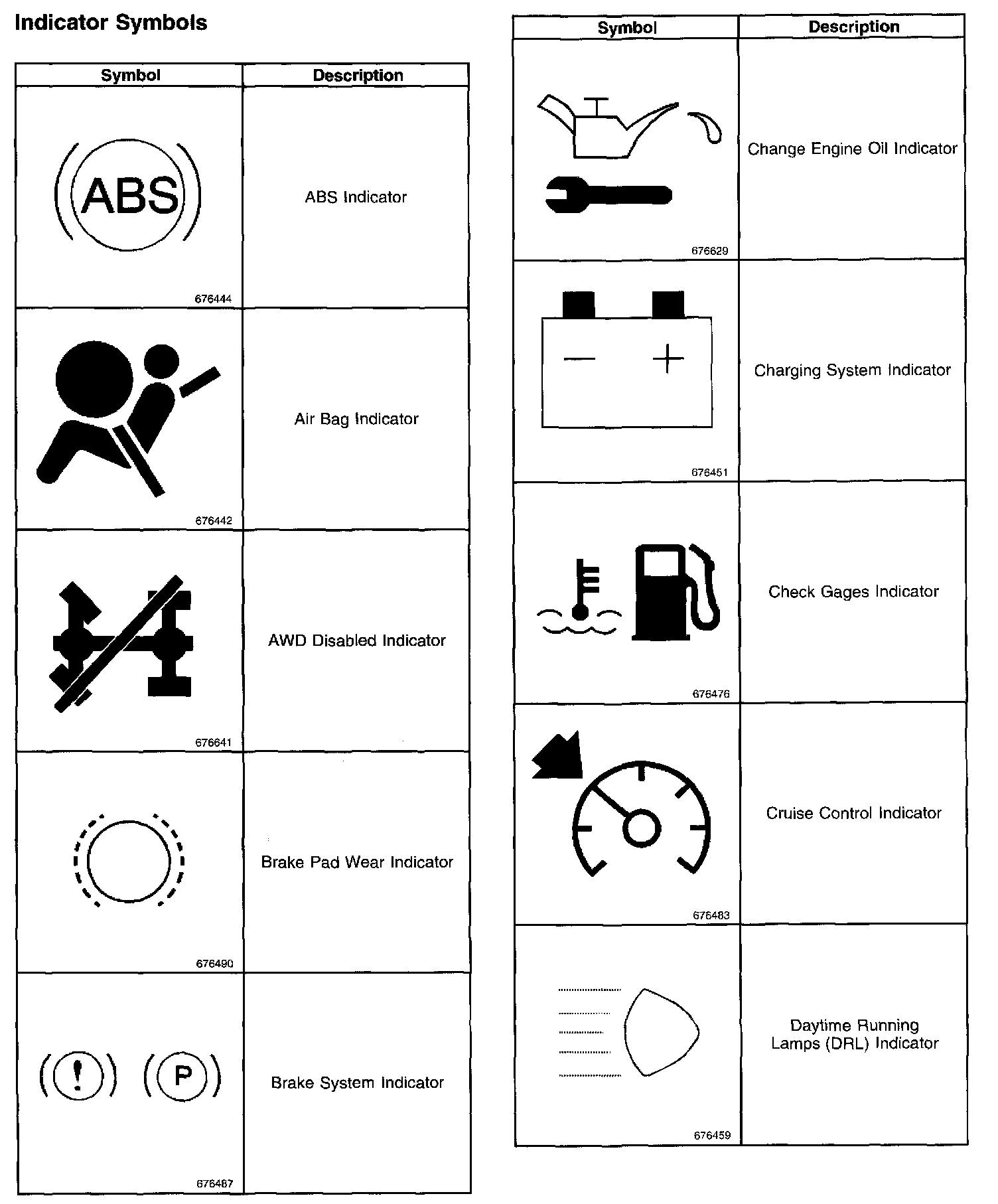

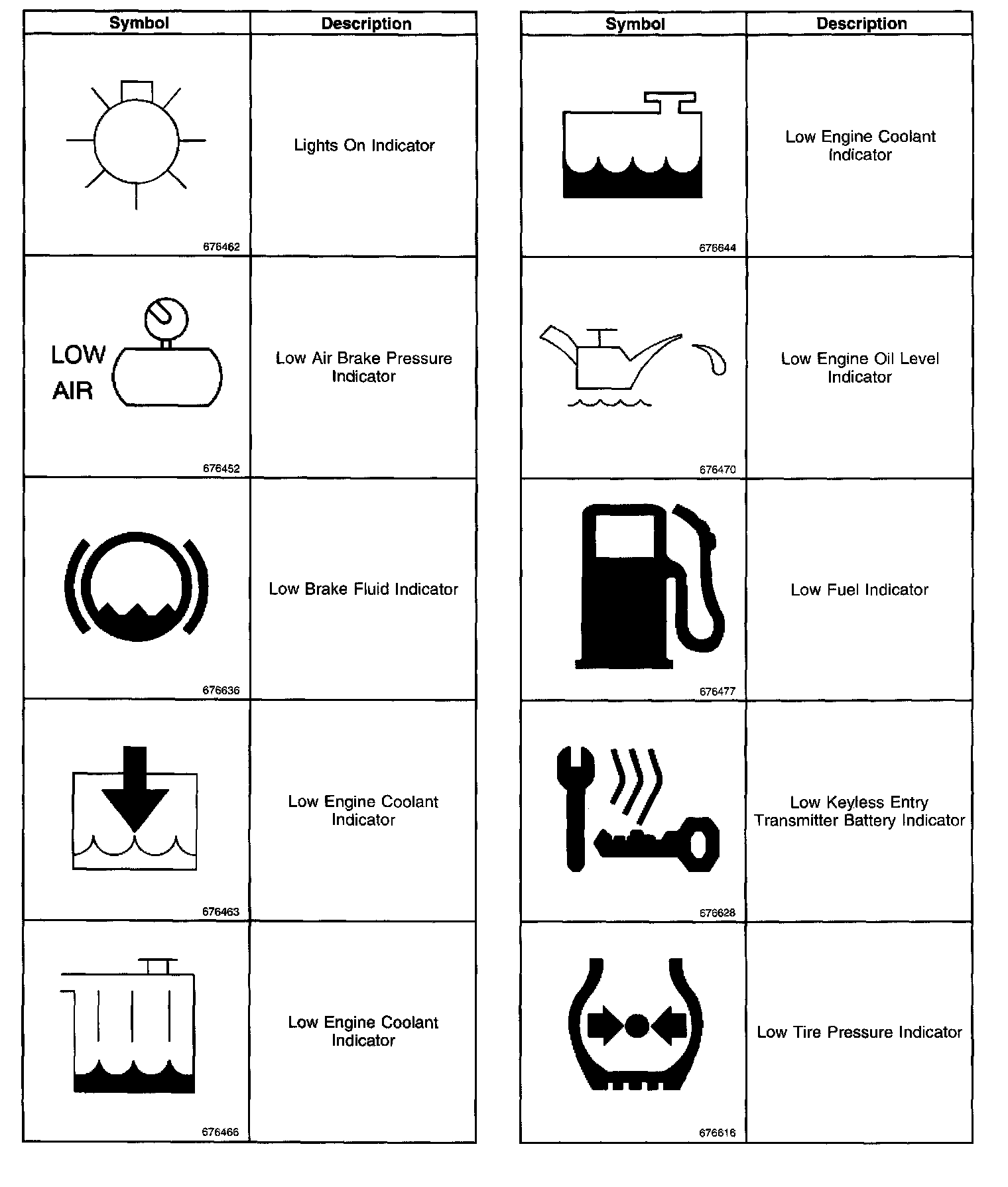

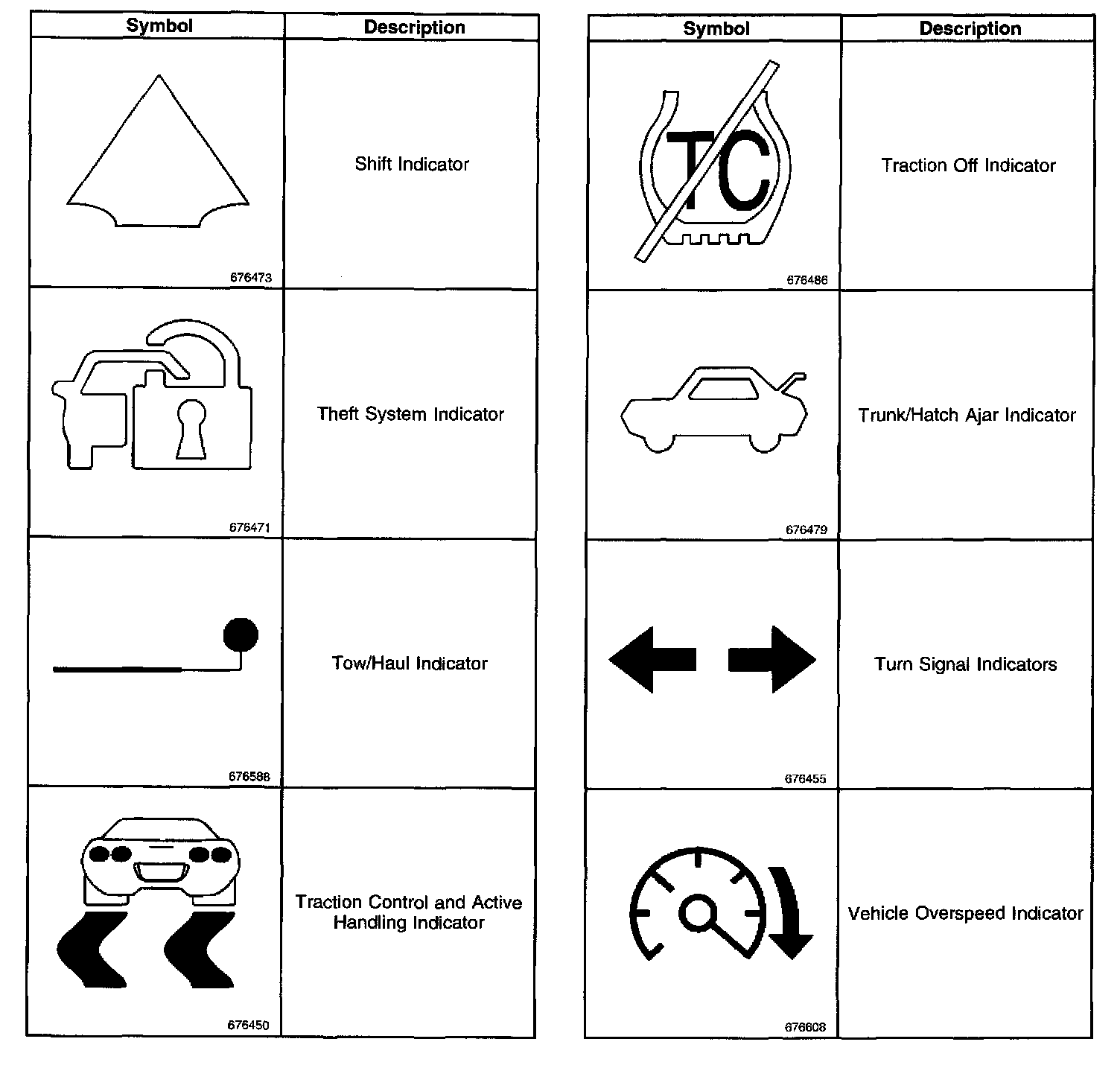

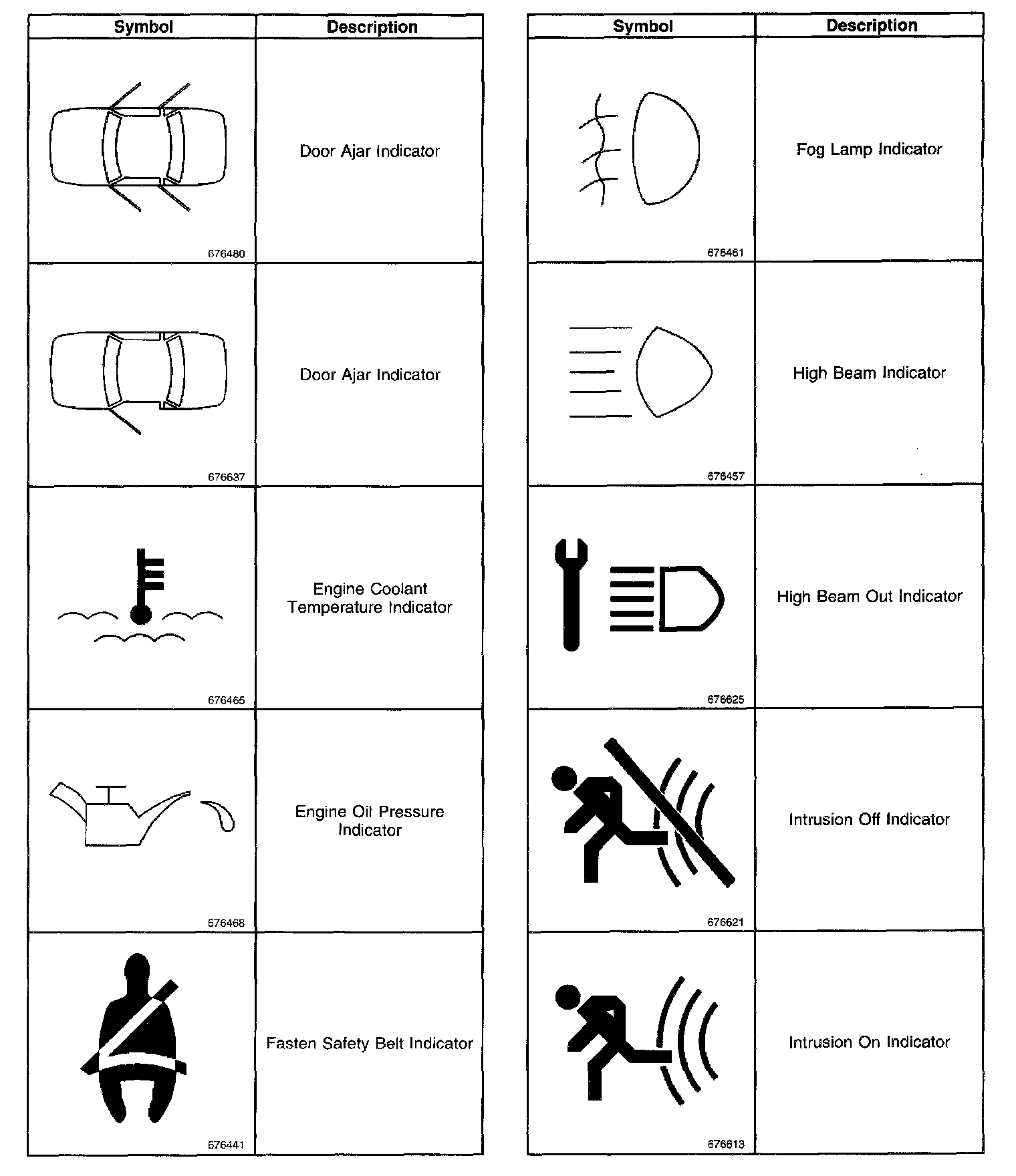

Indicator Symbols (Part 1 Of 5):




Indicator Symbols (Part 2 Of 5):




Indicator Symbols (Part 3 Of 5):




Indicator Symbols (Part 4 Of 5):




Indicator Symbols (Part 5 Of 5):
