Too Hot In Vehicle - Auxiliary

TEST DESCRIPTION

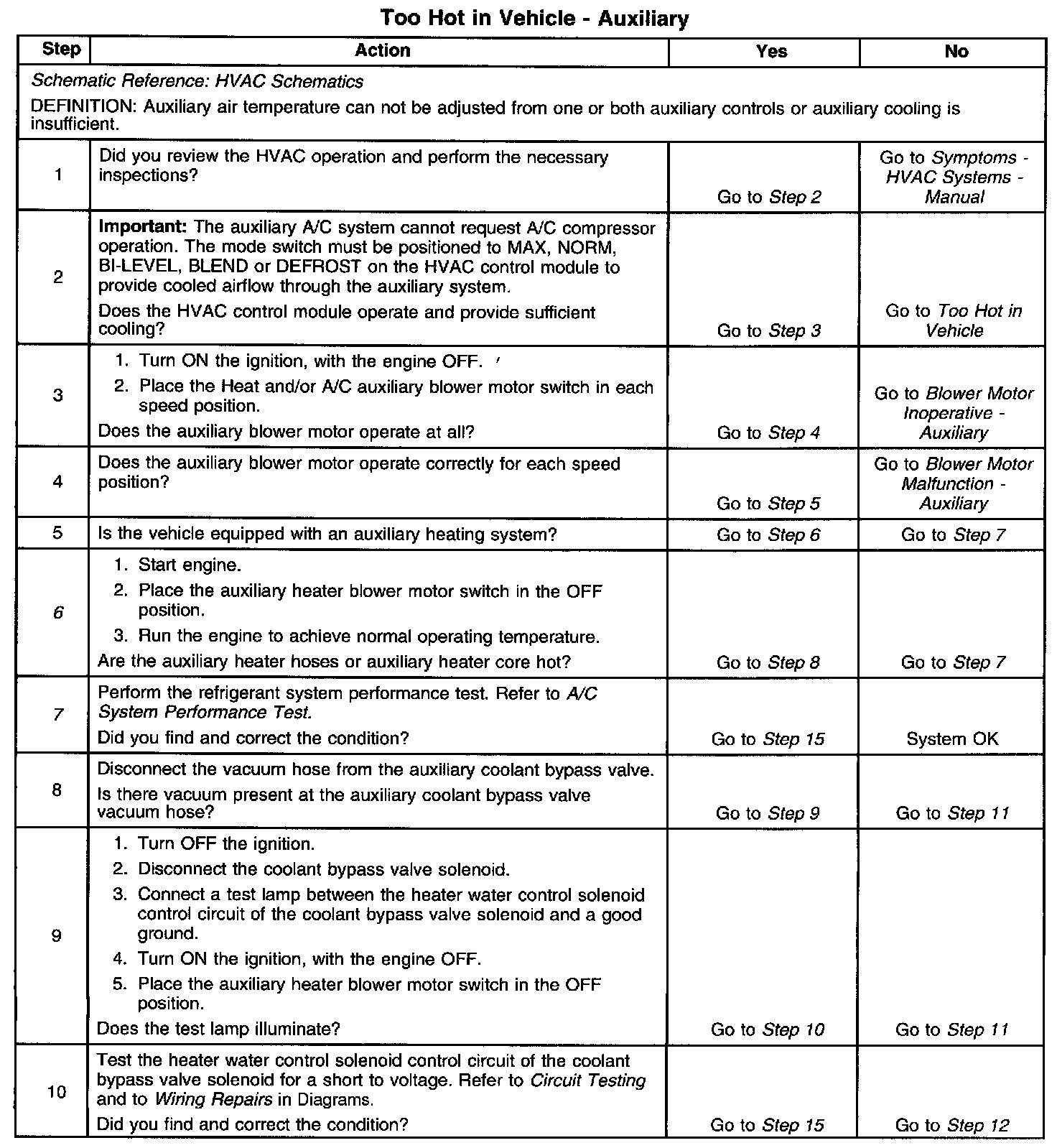

Steps 1-10:

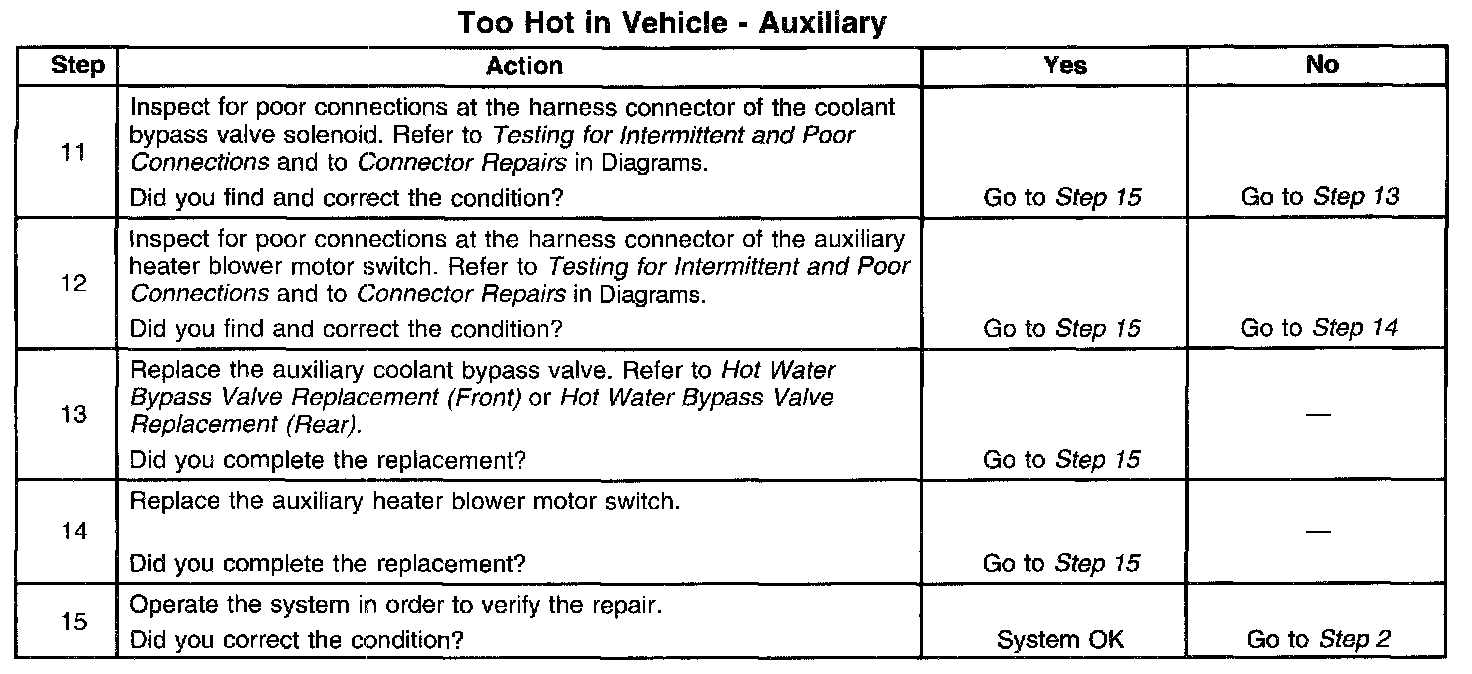

Steps 11-15:

The numbers below refer to the step numbers on the diagnostic table.
6. Checks for proper operation of the coolant bypass valve.
7. The specified values are from the A/C System Performance Test.
