Blower Motor Relay: Service and Repair

BLOWER MOTOR RELAY REPLACEMENT

REMOVAL PROCEDURE

IMPORTANT: The blower motor relay that is used on the M/L van is an integral part of the blower motor resistor and can not be serviced separately from the resistor.




1. Remove the air cleaner.
2. Remove the windshield washers and the coolant reservoir.
3. Disconnect the electrical connectors.
4. Remove the screws from the blower motor resistor assembly.

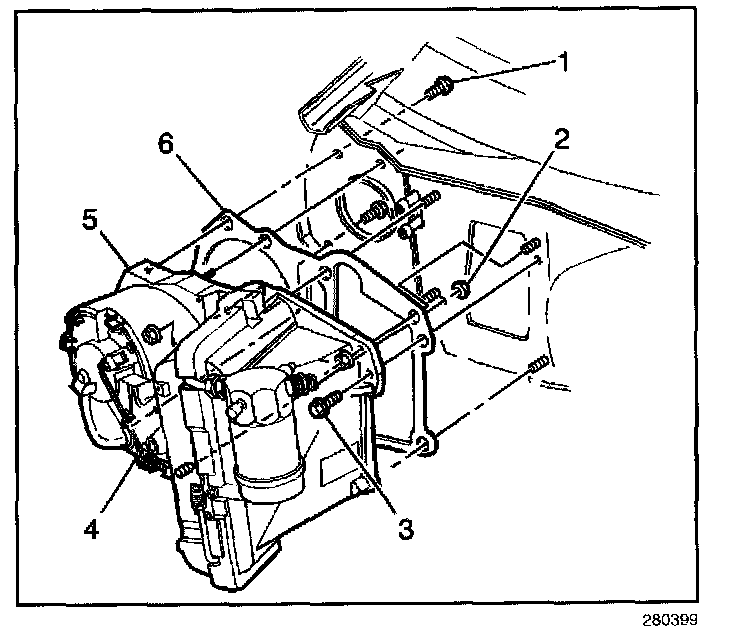

5. Remove the blower motor resistor assembly (4).

INSTALLATION PROCEDURE




1. Install the blower motor resistor assembly (4).

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the screws to the blower motor resistor assembly.

Tighten
Tighten the blower motor resistor assembly screws to 2 N.m (18 lb in).

3. Install the windshield washers and the coolant reservoir.
4. Connect the electrical connectors.
5. Install the air cleaner.
