Blower Motor Resistor Replacement -Heater Auxiliary

REMOVAL PROCEDURE




1. Remove the left body side trim panel.
2. Remove the electrical connector.
3. Remove the screws from the auxiliary heater blower motor resistor assembly.

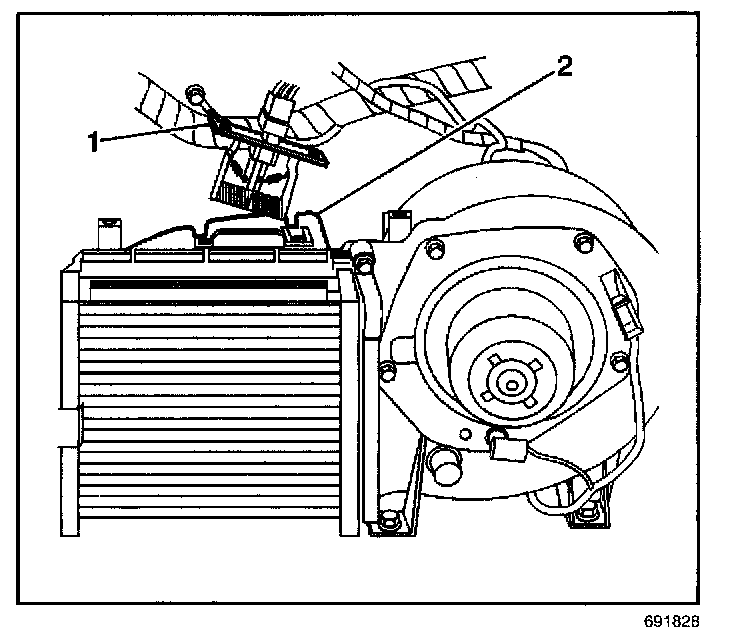

4. Remove the auxiliary heater blower motor resistor assembly (1) from the heater case.

INSTALLATION PROCEDURE




1. Install the auxiliary heater blower motor resistor assembly (1) into the heater case.

NOTE: Refer to Fastener Notice in Caution and Notices.

2. Install the auxiliary heater blower motor resistor assembly screws.

Tighten
Tighten the screws to 2 N.m (18 lb in).

3. Install the electrical connector.
4. Install the left body side rear trim panel.
