Blower Motor Resistor Assembly Replacement (YG6)

REMOVAL PROCEDURE




1. Remove the air cleaner.

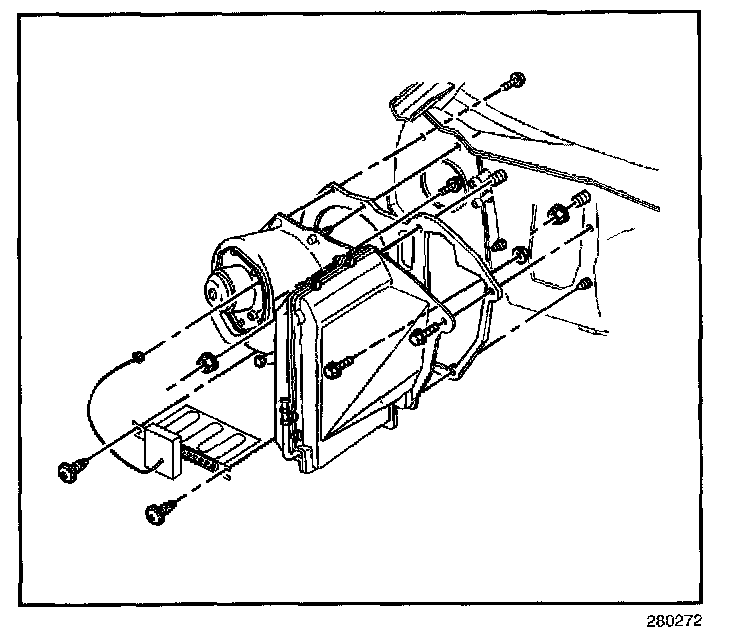

2. Remove the windshield washers and the coolant reservoir.
3. Disconnect the electrical connectors.
4. Remove the screws from the blower motor resistor assembly.
5. Remove the blower motor resistor assembly.

INSTALLATION PROCEDURE




1. Install the blower motor resistor assembly.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the screws to the blower motor resistor assembly.

Tighten
Tighten the screws to the blower motor resistor assembly to 2 N.m (18 lb in).

3. Connect the electrical connectors.
4. Install the windshield washers and the coolant reservoir.
5. Install the air cleaner.

"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
