Air Outlet Replacement - Defroster

AIR OUTLET REPLACEMENT - DEFROSTER

REMOVAL PROCEDURE

IMPORTANT: Do not remove the instrument panel.




1. Roll the instrument panel down. Refer to IP Carrier Replacement in Instrument Panel, Gages, and Console.
2. Remove the windshield defroster duct grille from the instrument panel.
3. Remove the windshield defroster duct retainers from the instrument panel.
4. Remove the retaining screw on the instrument panel carrier.

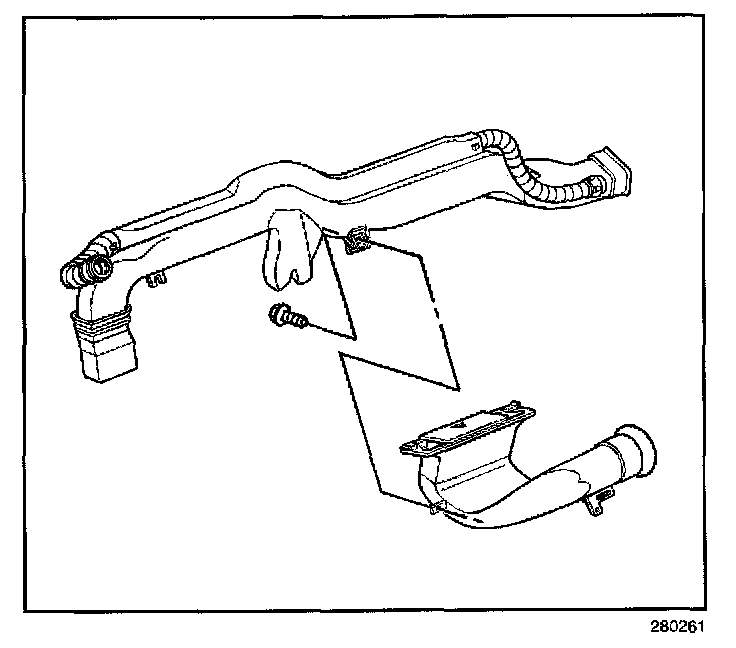

5. Remove the windshield defroster duct by rotating the duct downward and away from the instrument panel.

INSTALLATION PROCEDURE




1. Install the windshield defroster duct to the instrument panel.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the retaining screw to the instrument panel carrier.

Tighten
Tighten the retaining screw to the instrument panel carrier to 2 N.m (18 lb in).

3. Install the windshield defroster duct retainers to the instrument panel.
4. Install the windshield defroster duct grille to the instrument panel.
5. Roll the instrument panel up. Refer to IP Carrier Replacement in Instrument Panel, Gages, and Console.
