Mode Door Replacement

REMOVAL PROCEDURE




1. Remove the instrument panel assembly.
2. Remove the heater module from the instrument panel. Refer to IP Assembly Replacement.
3. Remove the mode actuator.

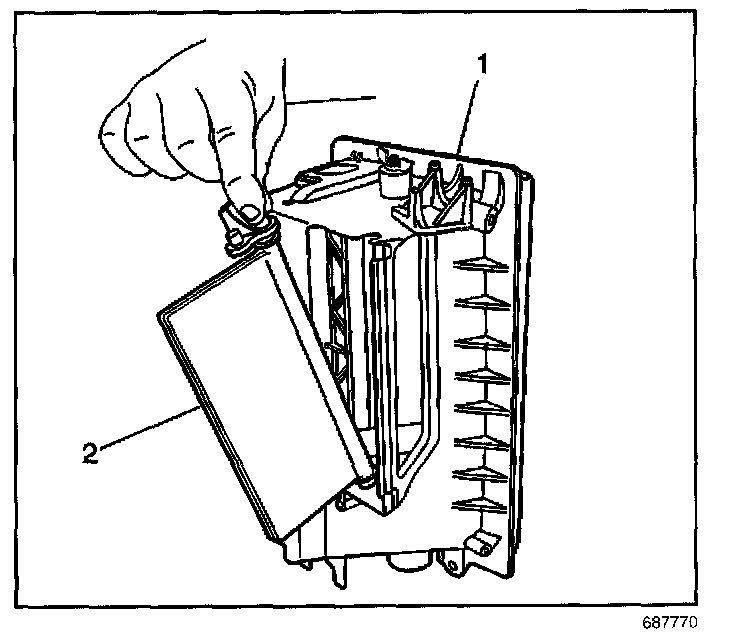

4. Remove the mode door (2) from the heater module (1).

INSTALLATION PROCEDURE




1. Install the mode door (2) to the heater module (1).
2. Install the mode actuator.
3. Install the heater module to the instrument panel assembly. Refer to IP Assembly Replacement.
4. Install the instrument panel assembly.
