Air Temperature Door Replacement

REMOVAL PROCEDURE




1. Remove the Instrument panel assembly.
2. Remove the air temperature actuator from the heater case.

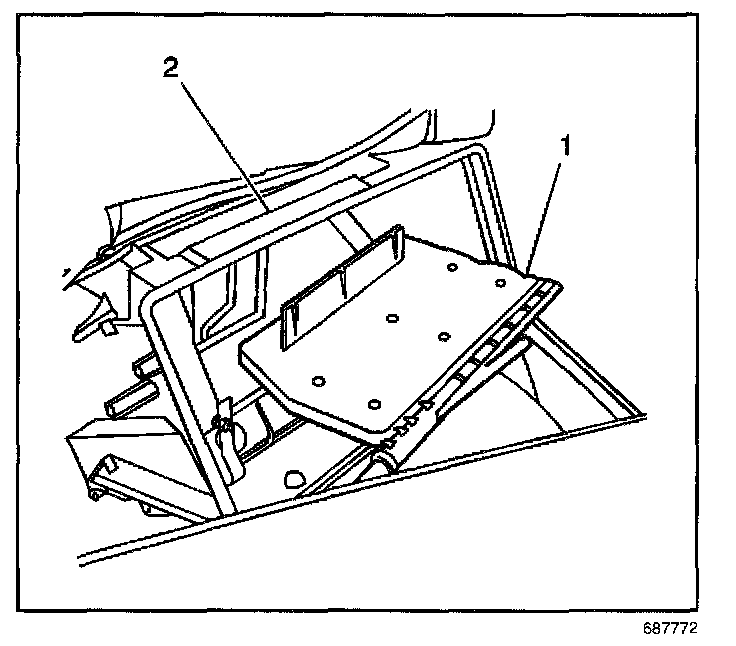

3. Remove the air temperature door (1) from the heater case.

INSTALLATION PROCEDURE




1. Install the air temperature door (1) to the heater case.
2. Install the air temperature actuator to the heater case.
3. Install the Instrument panel assembly.
