29. Piston and Connecting Rod Disassemble

Piston and Connecting Rod Disassemble

Tools Required
- J 24086-C Piston Pin Remover/installer

Caution: Refer to Safety Glasses Caution in Service Precautions.

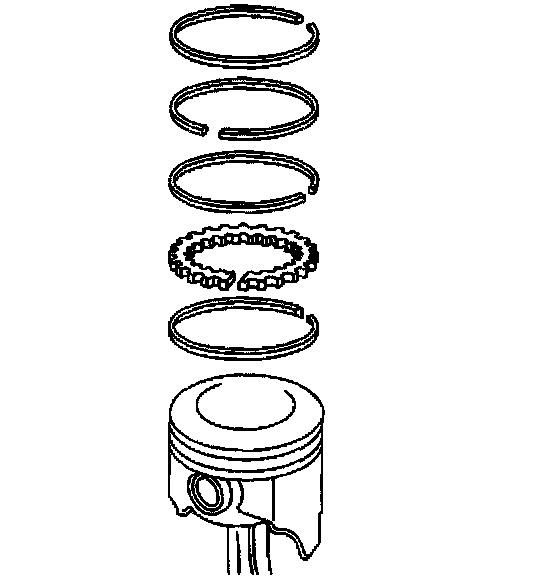

1. Remove the piston rings from the pistons.

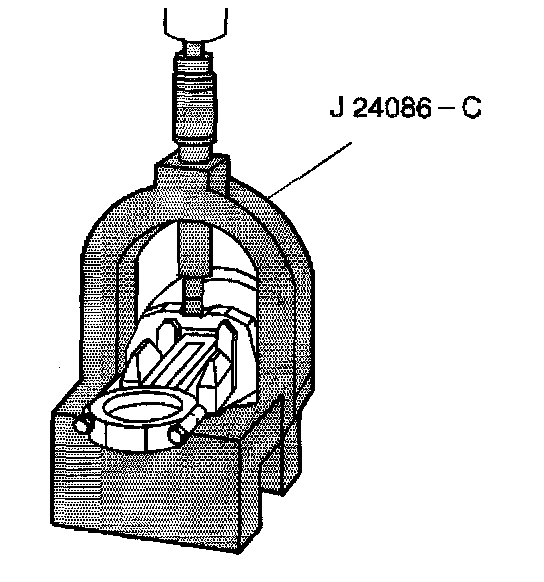

2. Press the piston pin from the connecting rod using the J24086-C.
The piston pin has an interference fit into the connecting rod, and is full floating in the piston.

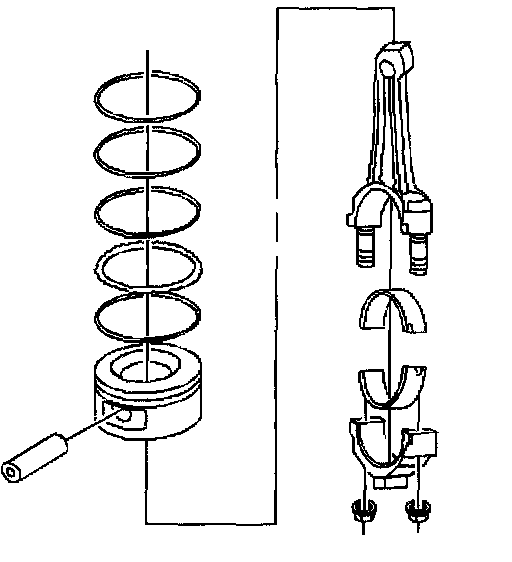

3. Mark, separate, and organize the parts for assembly.
