19. Engine Front Cover Removal

Engine Front Cover Removal

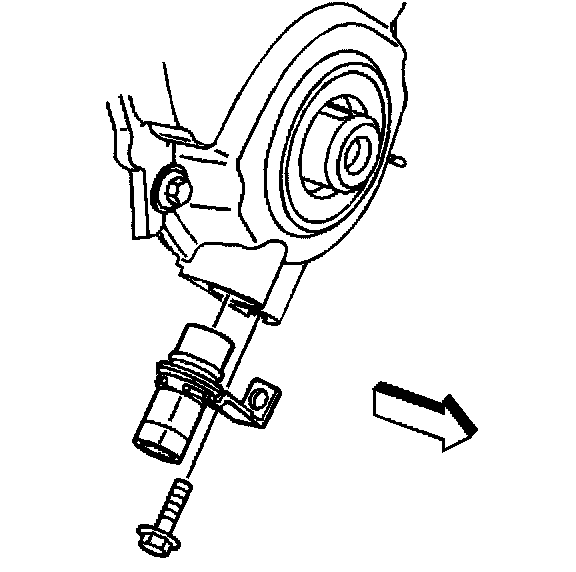

1. Remove the crankshaft position sensor bolt.
2. Remove the crankshaft position sensor.

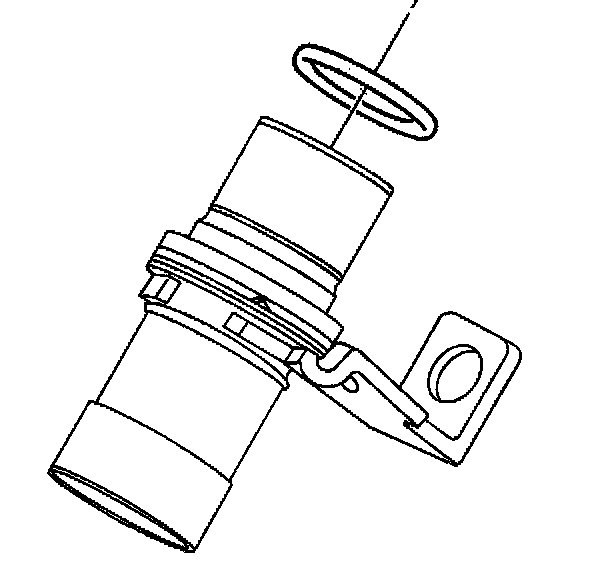

3. Remove the crankshaft position sensor seal (O-ring).
4. Discard the crankshaft position sensor seal (O-ring).

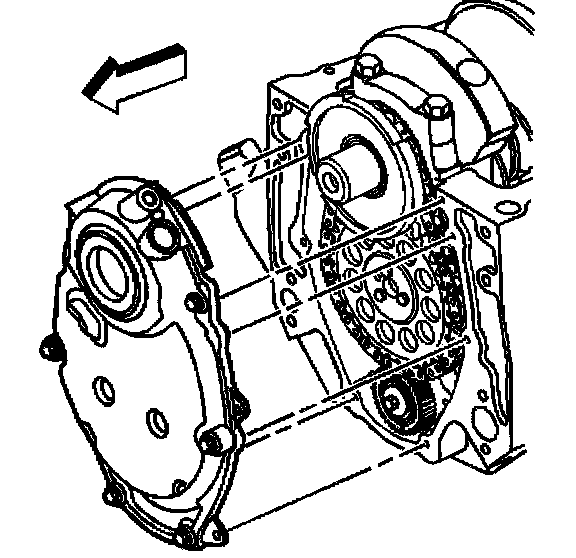

5. Remove the engine front cover bolts.

Important: After the composite engine front cover is removed do not reinstall the engine front cover. Always install a NEW engine front cover.

6. Remove the engine front cover.
7. Discard the engine front cover.
