17. Oil Pan Removal
Oil Pan Removal

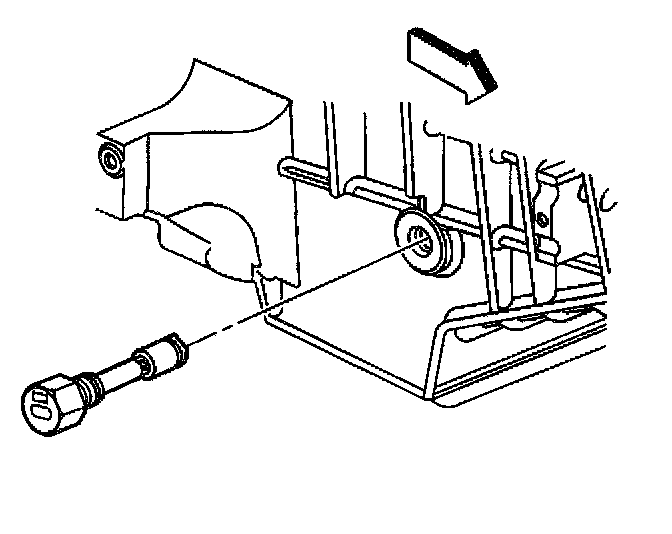

1. Remove and discard the engine oil level sensor (if applicable).

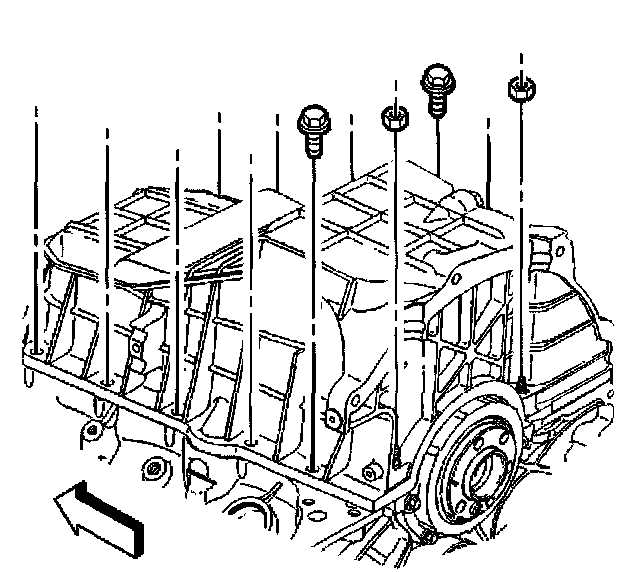

2. Remove the oil pan bolts and nuts.

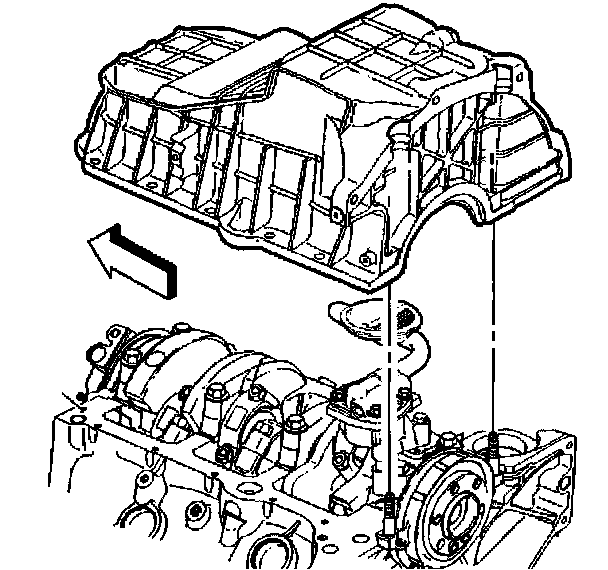

3. Remove the oil pan.

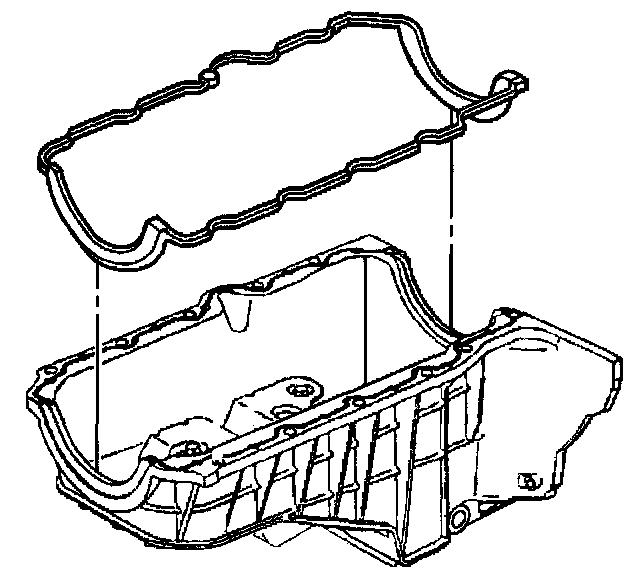

4. Remove the oil pan gasket.
5. Discard the oil pan gasket.
1. Remove and discard the engine oil level sensor (if applicable).
2. Remove the oil pan bolts and nuts.
3. Remove the oil pan.
4. Remove the oil pan gasket.
5. Discard the oil pan gasket.
