12. Valve Rocker Arm and Push Rod Removal

Valve Rocker Arm and Push Rod Removal

Important: Mark, sort, and organize all the components for assembly.

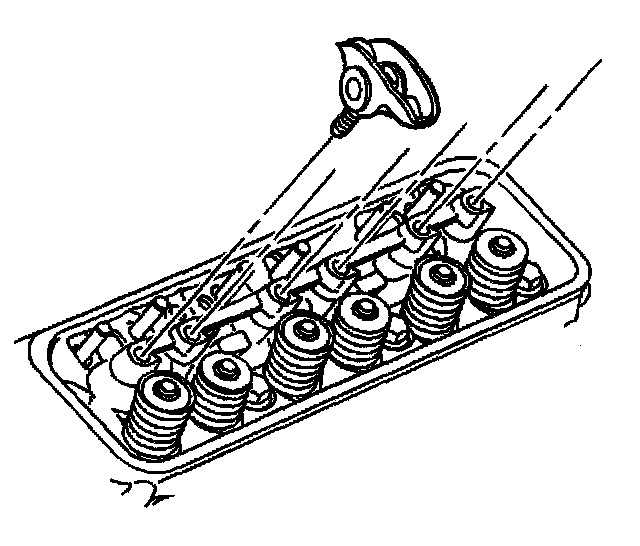

1. Remove the valve rocker arms.

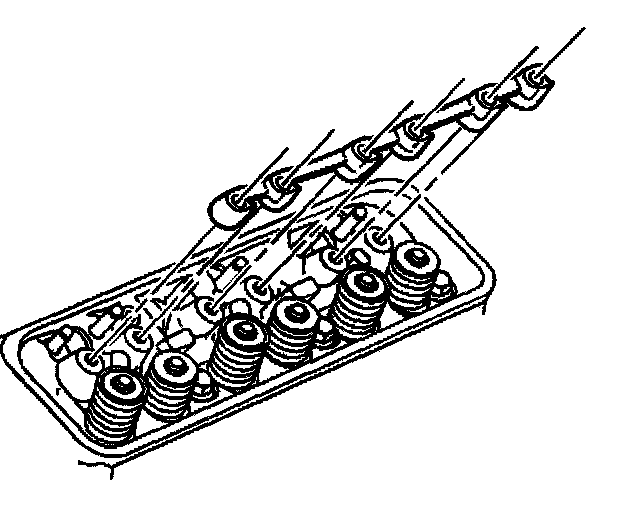

2. Remove the valve rocker arm supports.

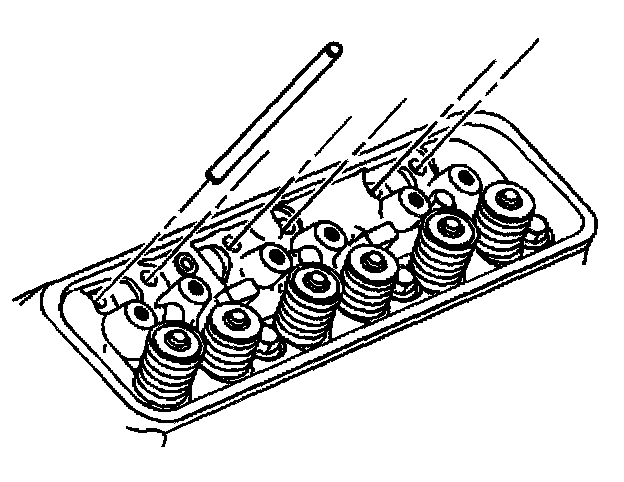

3. Remove the valve pushrods.
