10. Distributor Removal

Distributor Removal

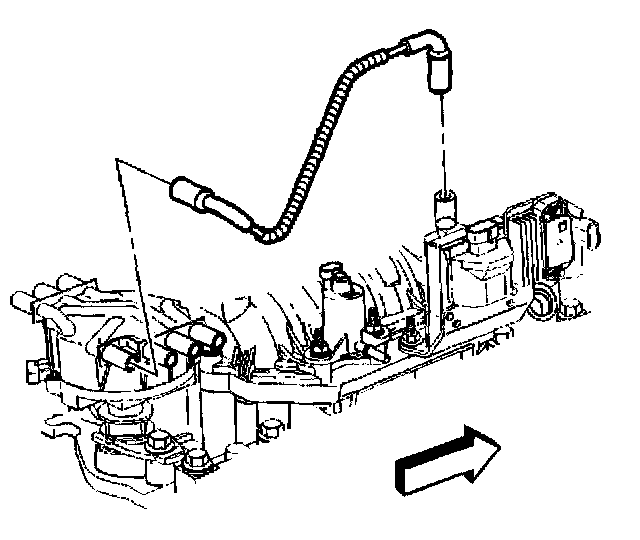

1. Remove the ignition coil wire harness from the ignition coil and distributor cap.

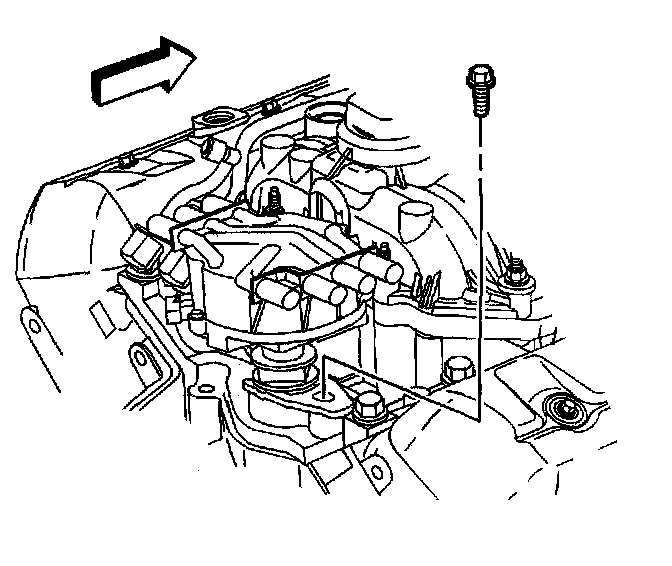

2. Remove the distributor clamp bolt.

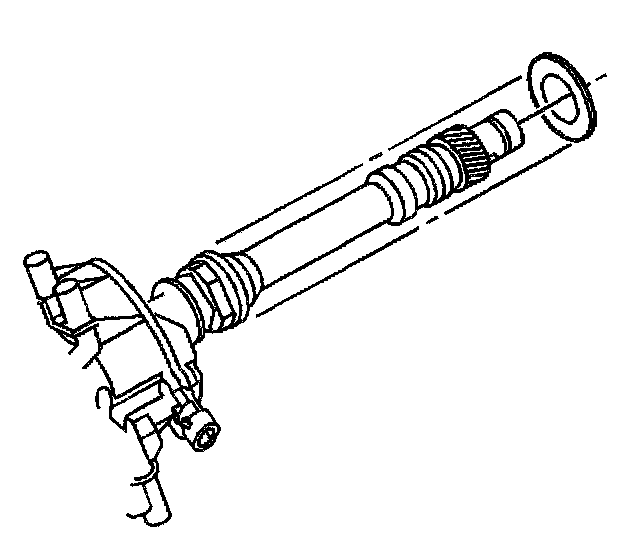

3. Remove the distributor and the distributor clamp.





4. Remove the distributor gasket and discard;
