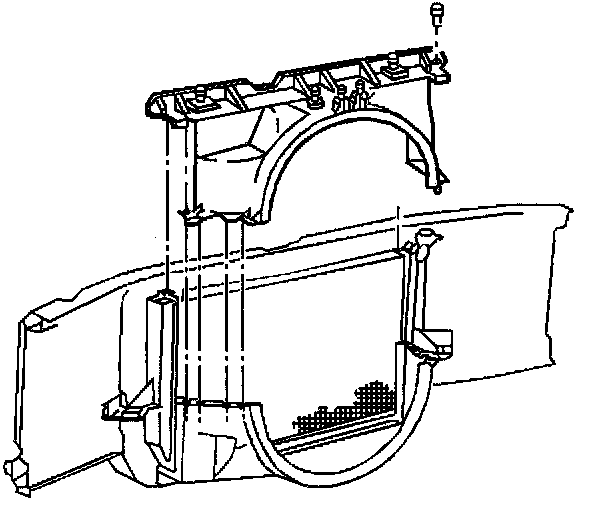

Fan Shroud Replacement - Upper

Removal Procedure





1. Remove the air cleaner assembly.
2. Remove the upper fan shroud bolts.
3. Remove the upper fan shroud.

Installation Procedure





1. Install the upper fan shroud.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the upper shroud bolts.
Tighten the upper fan shroud bolts to 15 Nm (11 ft. lbs.).
3. Install the air cleaner assembly.
