Safari Van 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
>>
S200 - S299
>>

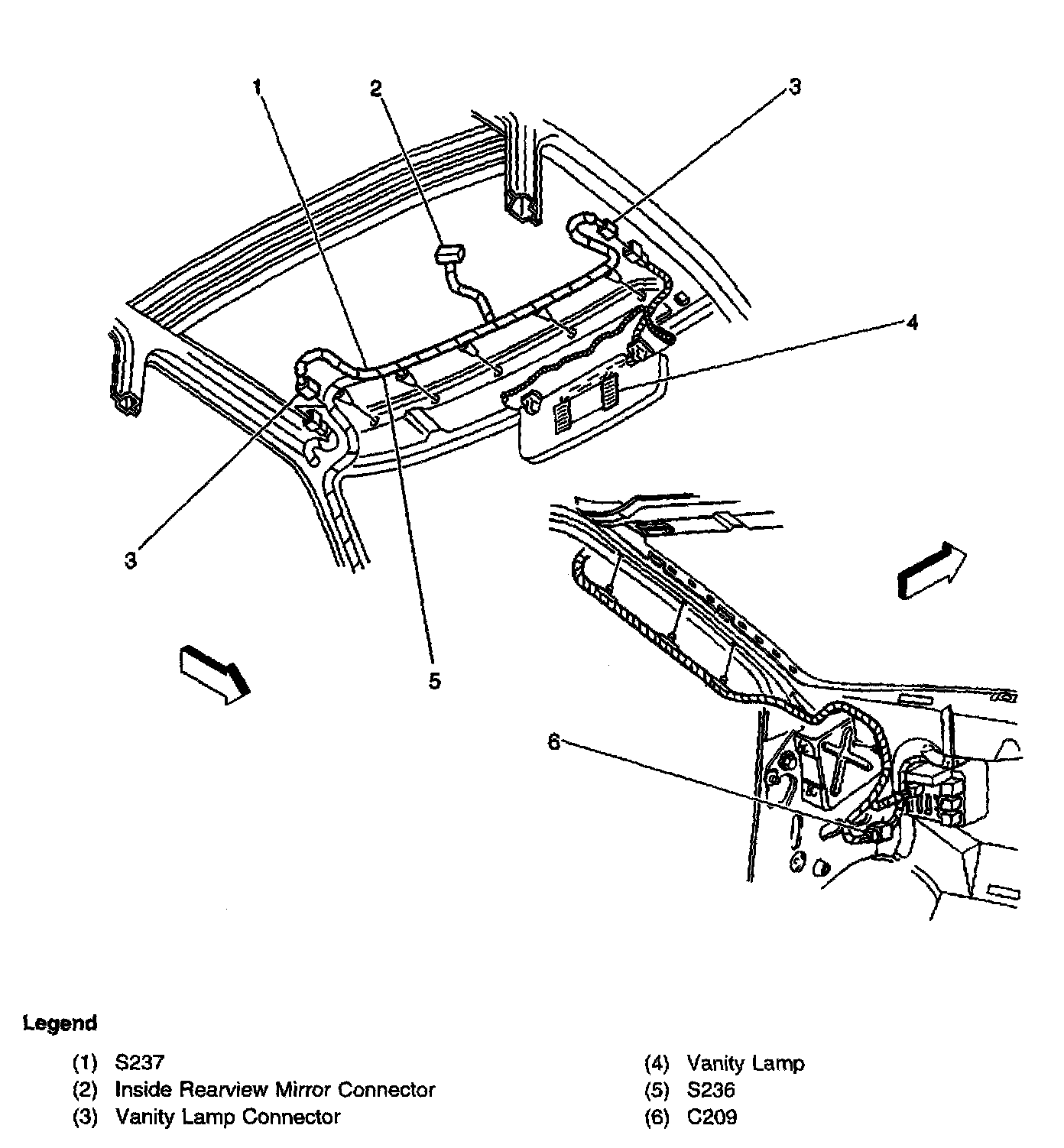

S236
S236
Locations View:
In the vanity mirror harness
7.5 cm (2.9 in)
from the left vanity mirror breakout toward the right vanity
