Door Wiring - Front Passenger (Driver Similar)
Door Wiring - Front Passenger (Driver Similar)

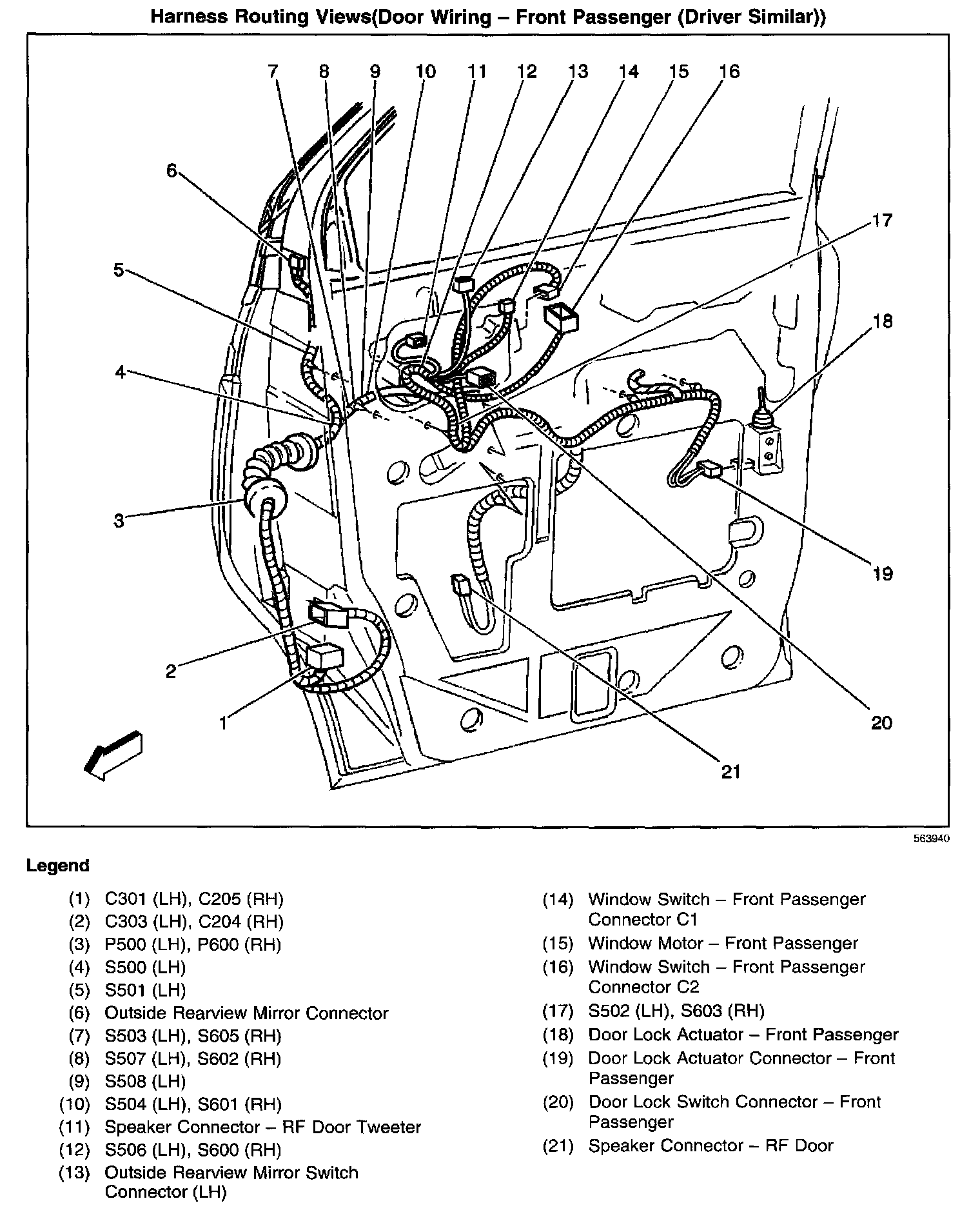

Harness Routing Views (Door Wiring-Front Passenger (Driver Similar)):
