Home >> GMC >> 2001 >> Safari Van 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Gear

Steering Gear




Part 1 of 2

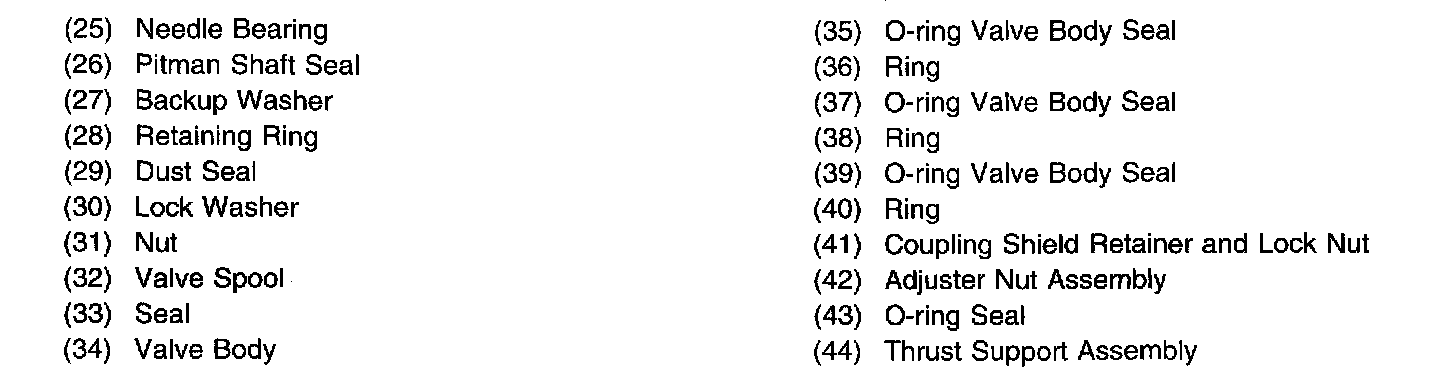

Part 2 of 2

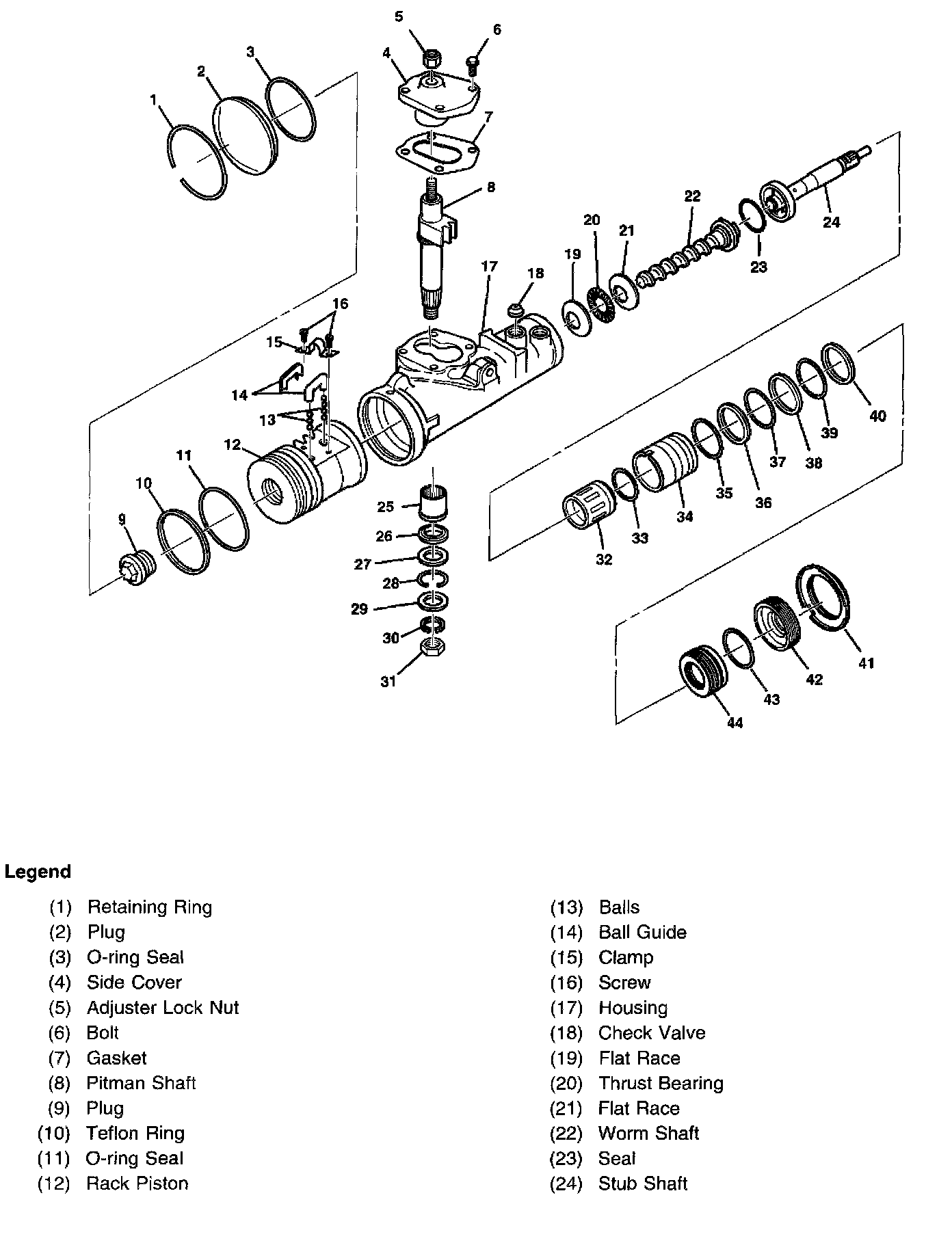

Power Steering Gear Disassembled View (Saginaw - 708Model)
