Home
>>
GMC
>>
2001
>>
Safari Van 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly
>>
Rear Drive Axle
Rear Drive Axle

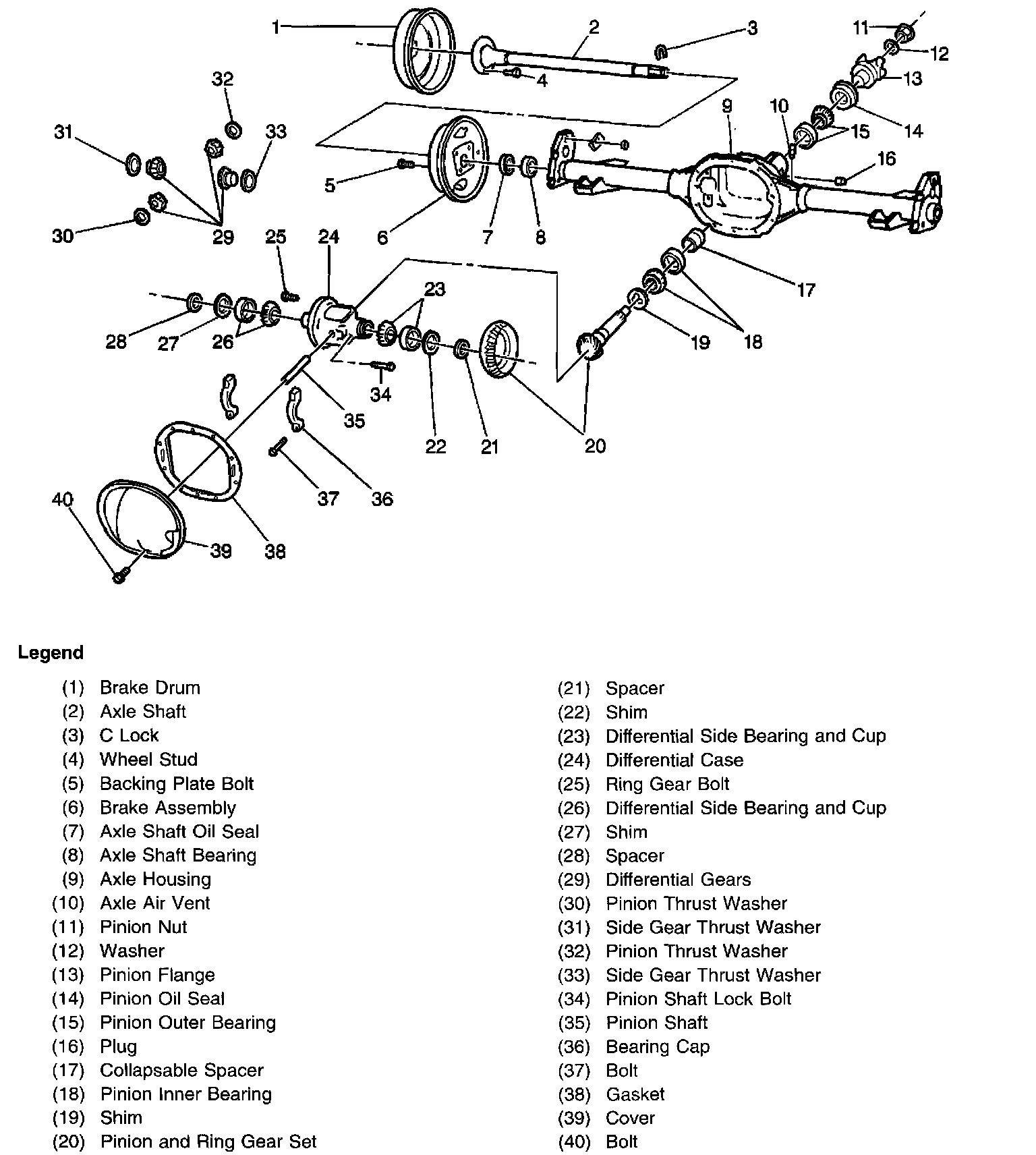

Rear Axle Disassembled Views
