G200 - G299

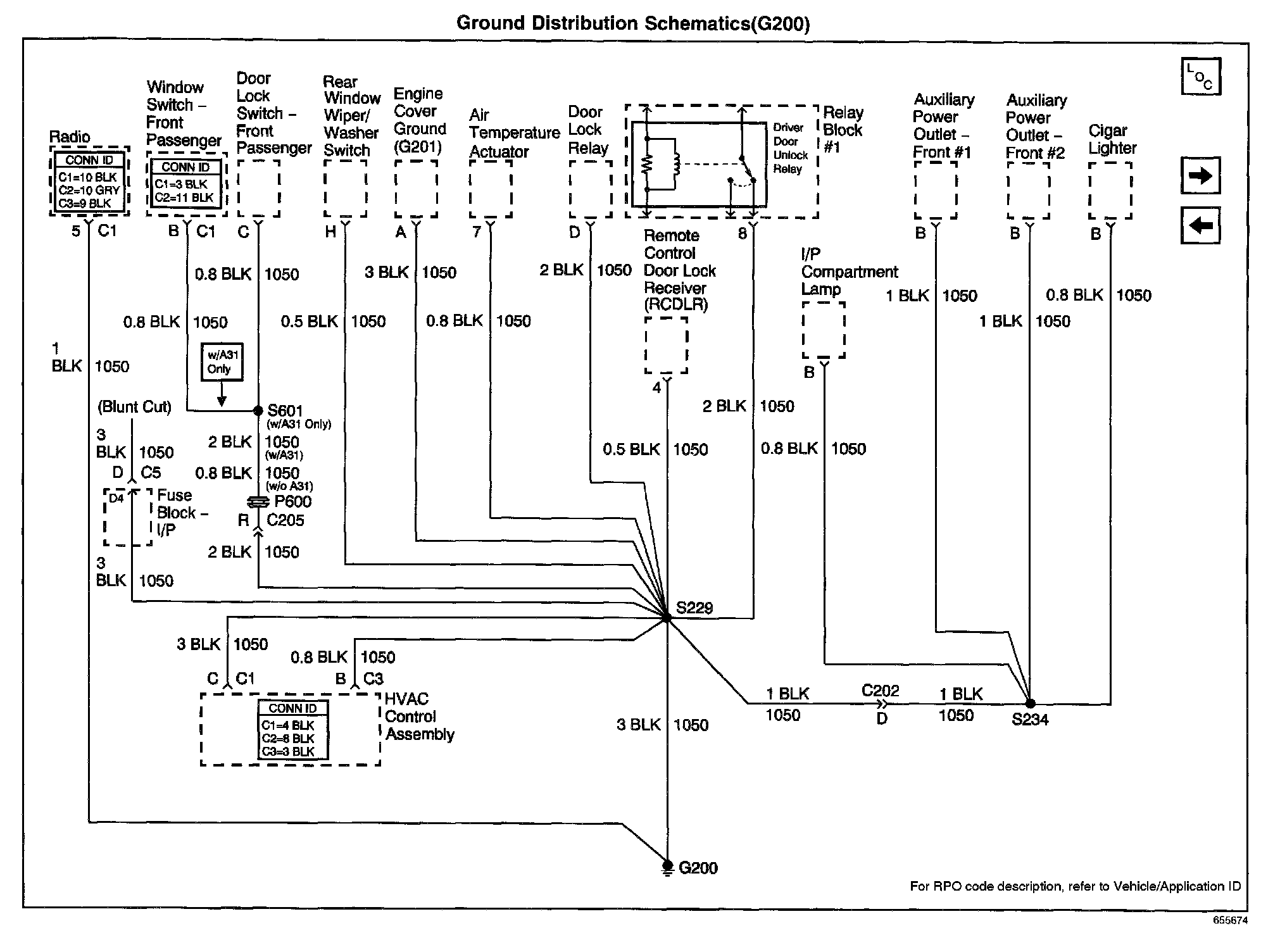

Ground Distribution Schematics: G200:



Cigar Lighter/Auxillary Outlets Schematics: G200 And G400:
