Fuel Delivery & Controls

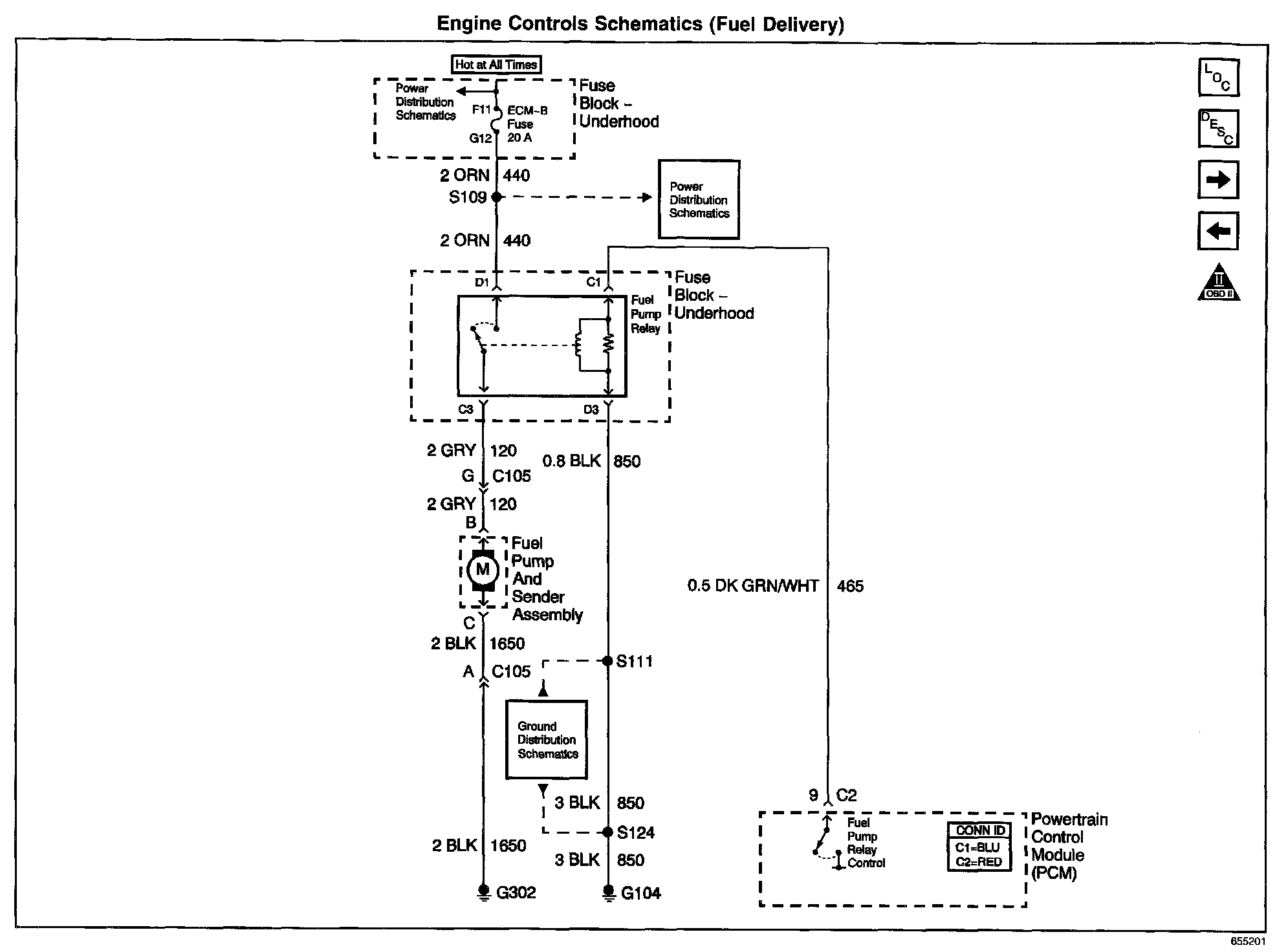

Engine Controls Schematics: Fuel Delivery:

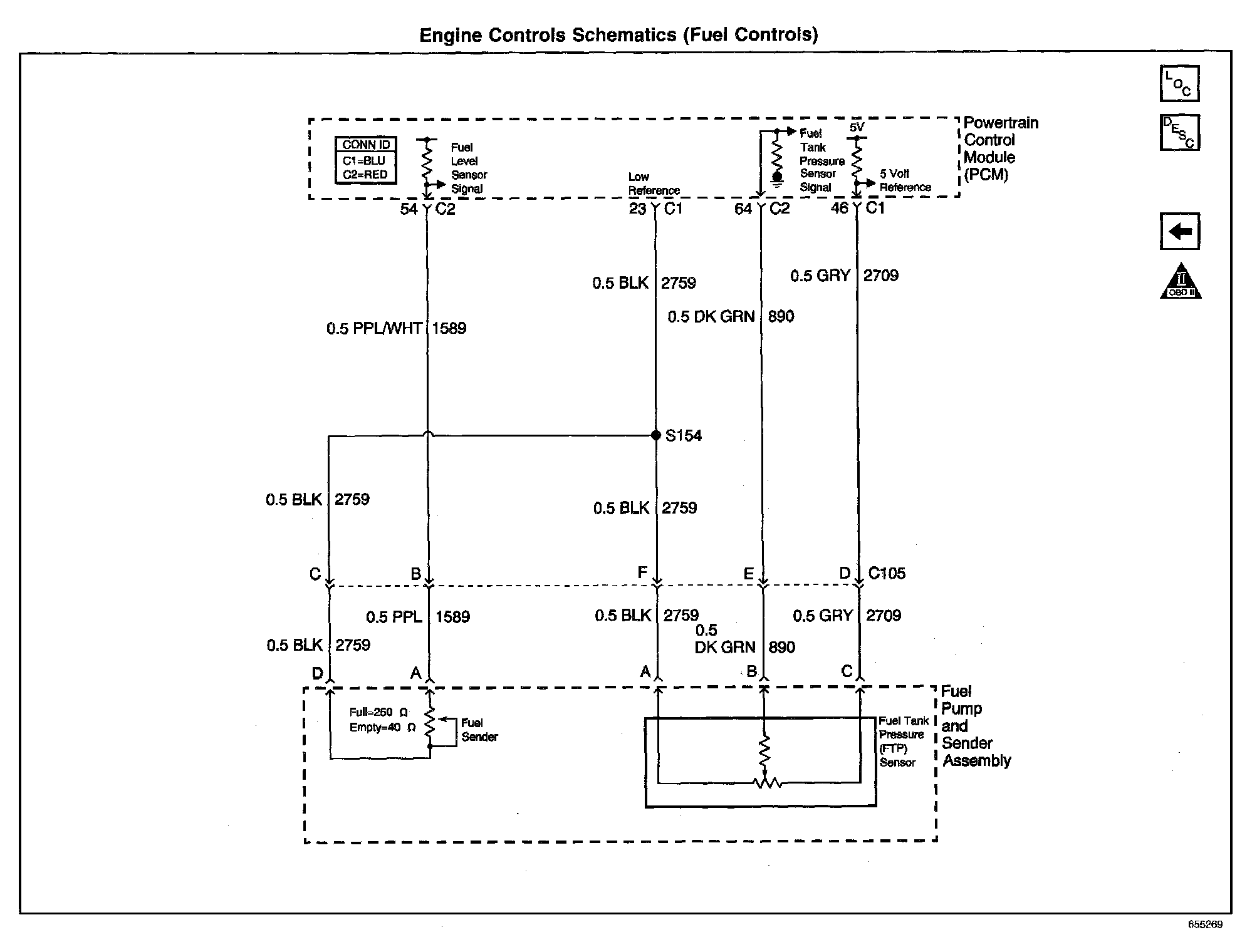

Engine Controls Schematics: Fuel Controls:
