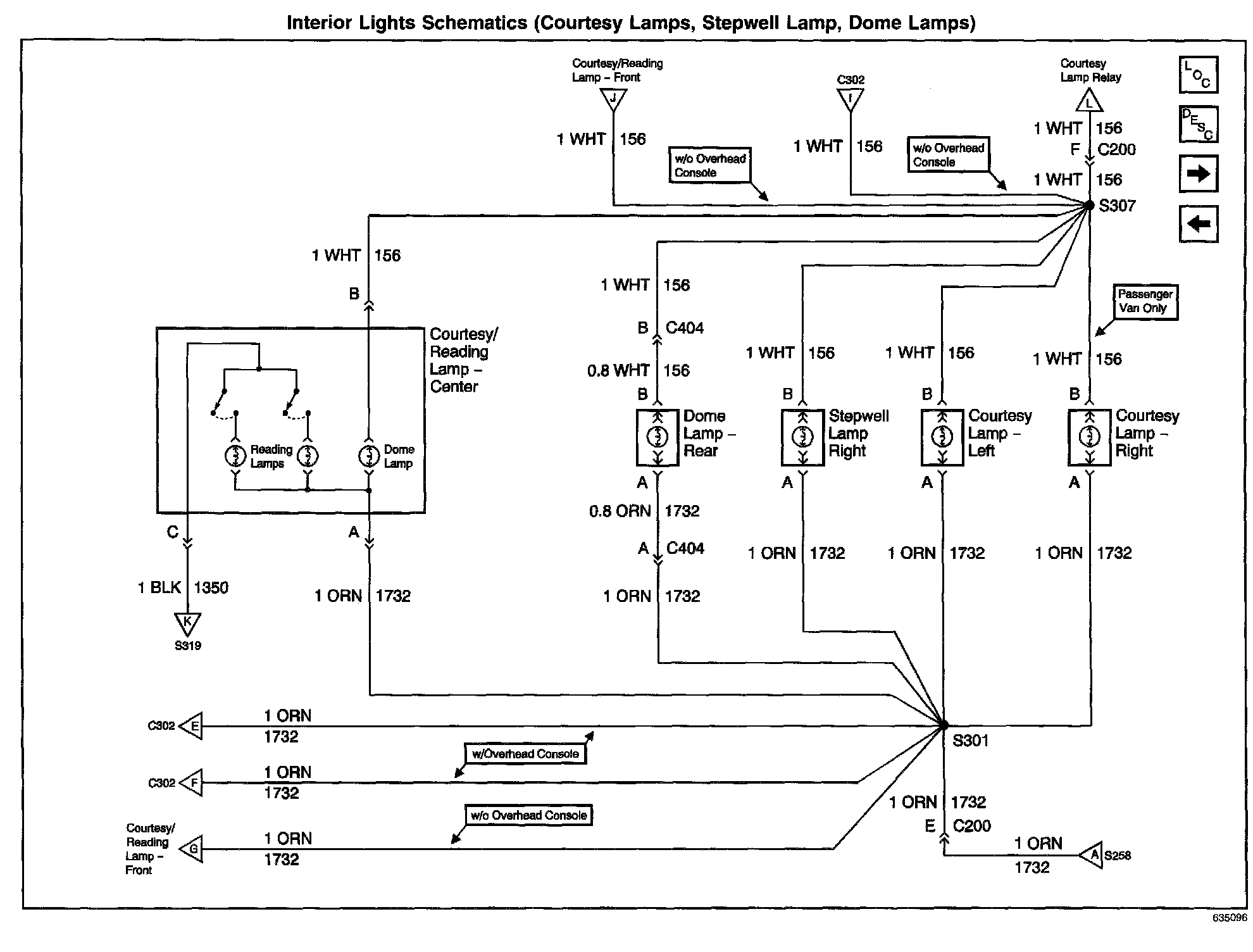

Courtesy Lamps, Stepwell Lamp, Dome Lamps

Interior Lights Schematics: Courtesy Lamps, Stepwell Lamp, Dome Lamps:
