Overhead Console, Rear Heater and A/C Switches

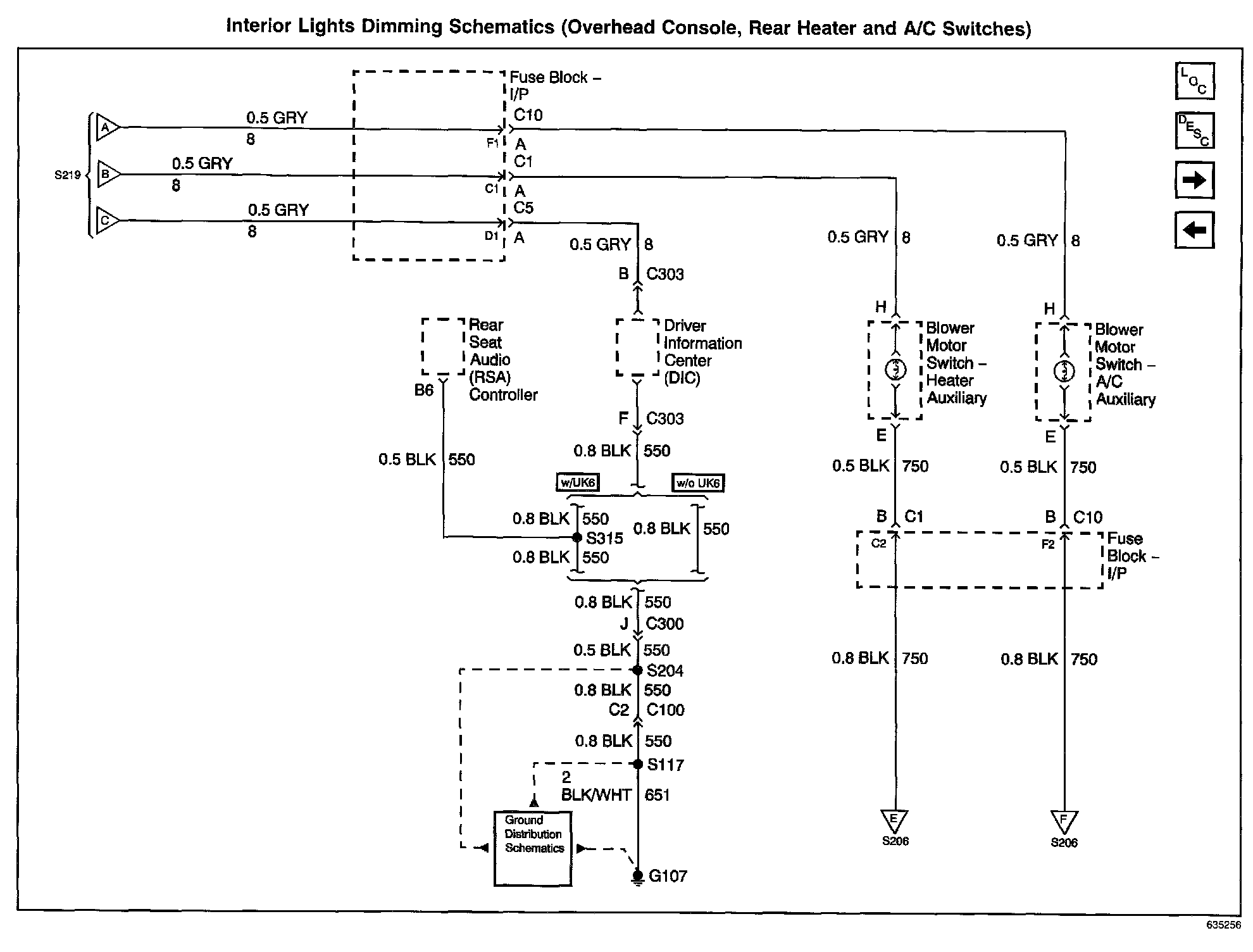

Interior Lights Dimming Schematics: Overhead Console, Rear Heater and A/C Switches:
