(VE1 Export) (Composite Headlamps (VE1))

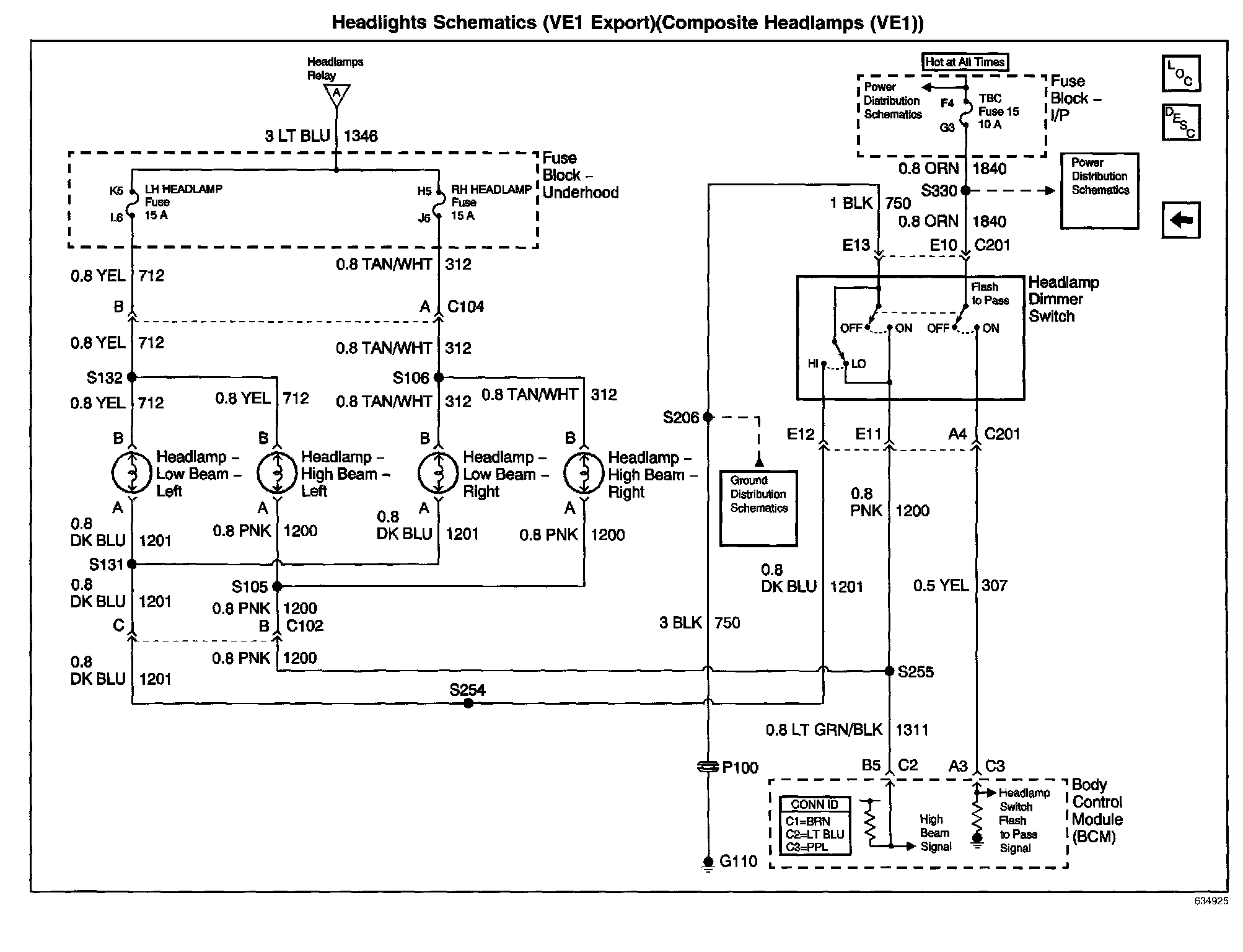

Headlights Schematics: VE1 Export (Composite Headlamps (VE1)):





For a description of the RPO Code(s) shown in this article/images refer to the RPO Code List found at Vehicle/Application ID RPO Codes
