Trailer Wiring Harness Connections

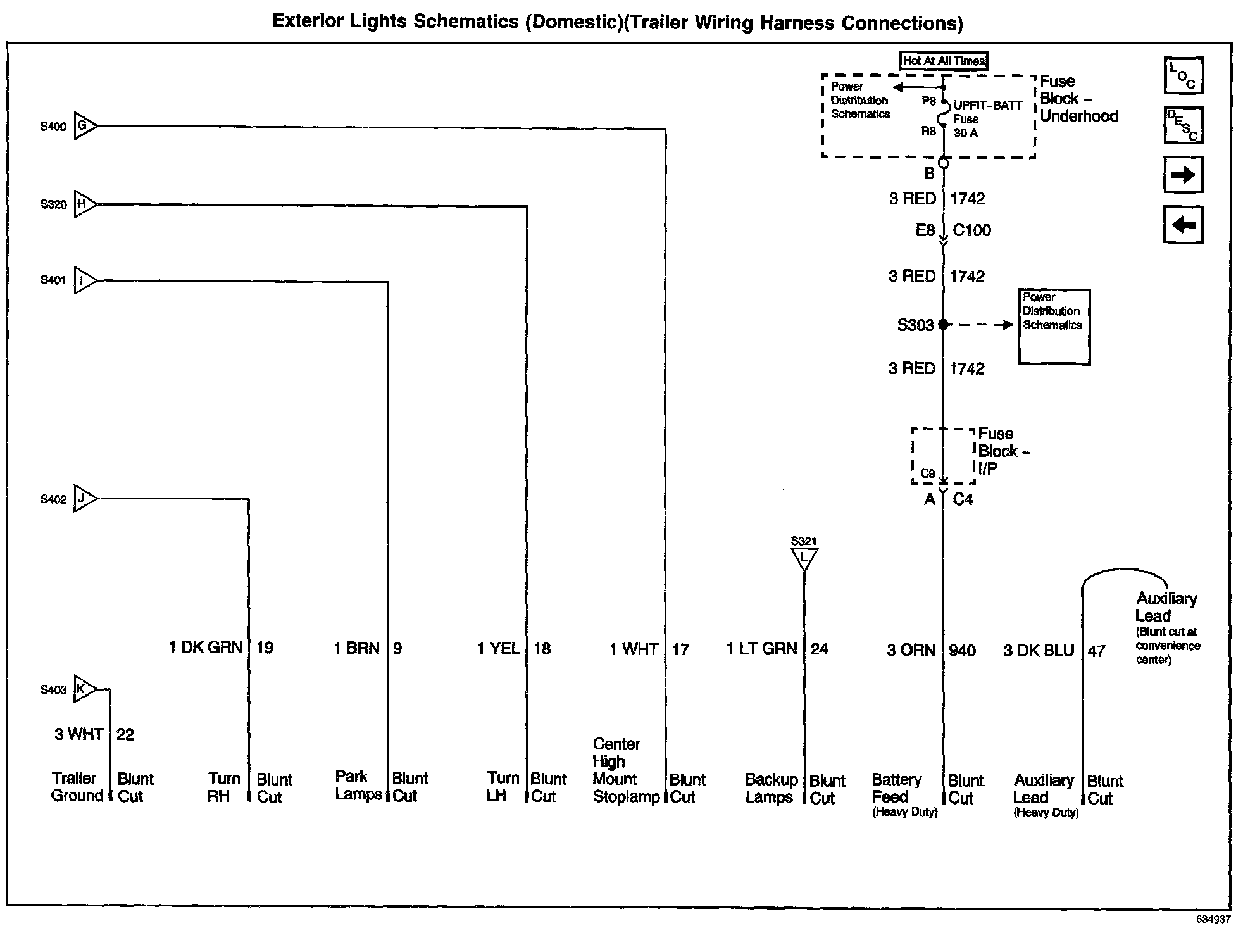

Exterior Lights Schematics: Domestic (Trailer Wiring Harness Connections):
