ILLUM, TRANS, and GAUGES Fuse, and Grounds

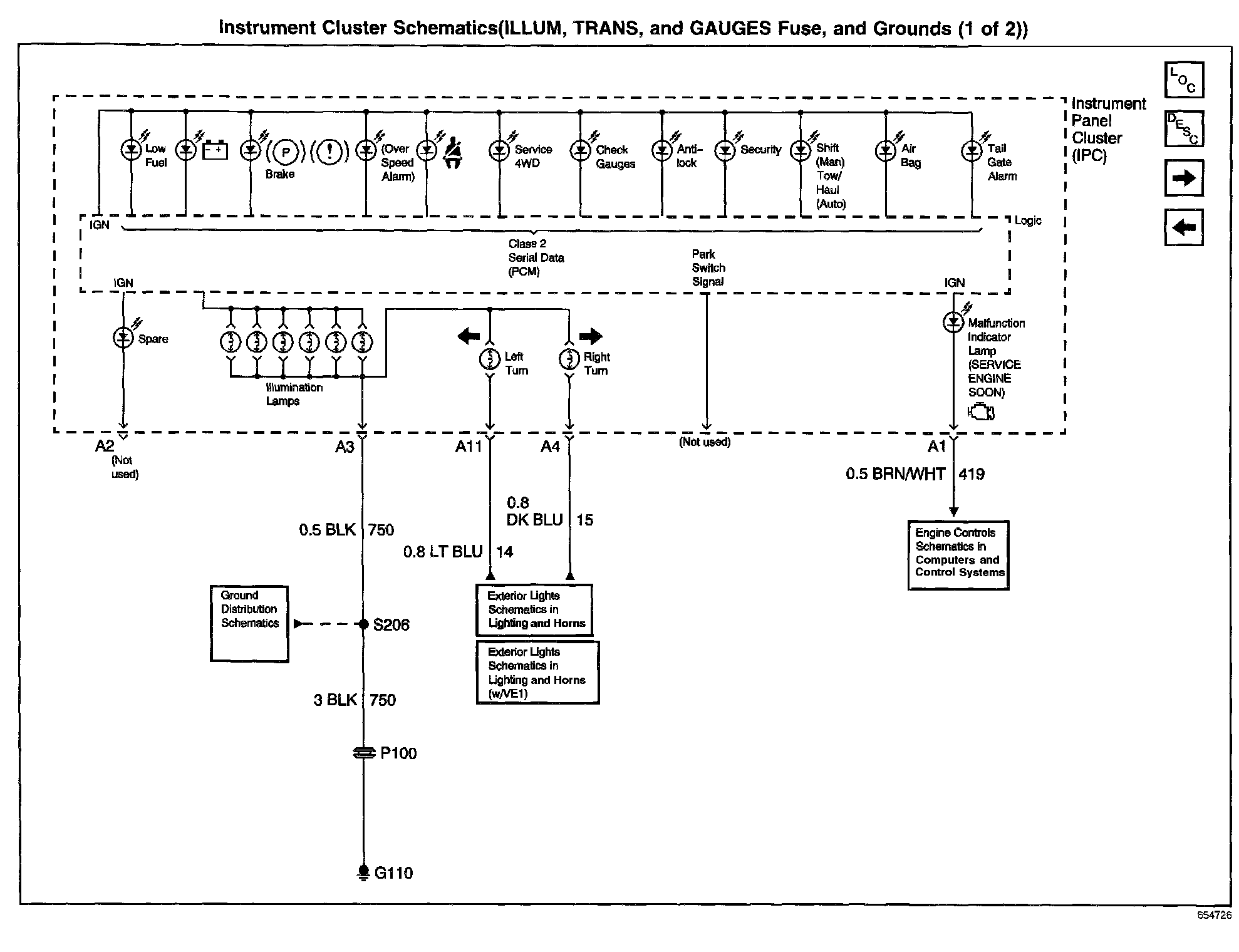

Instrument Cluster Schematics: ILLUM, TRANS, and GAUGES Fuse, and Grounds (Part 1 of 2):

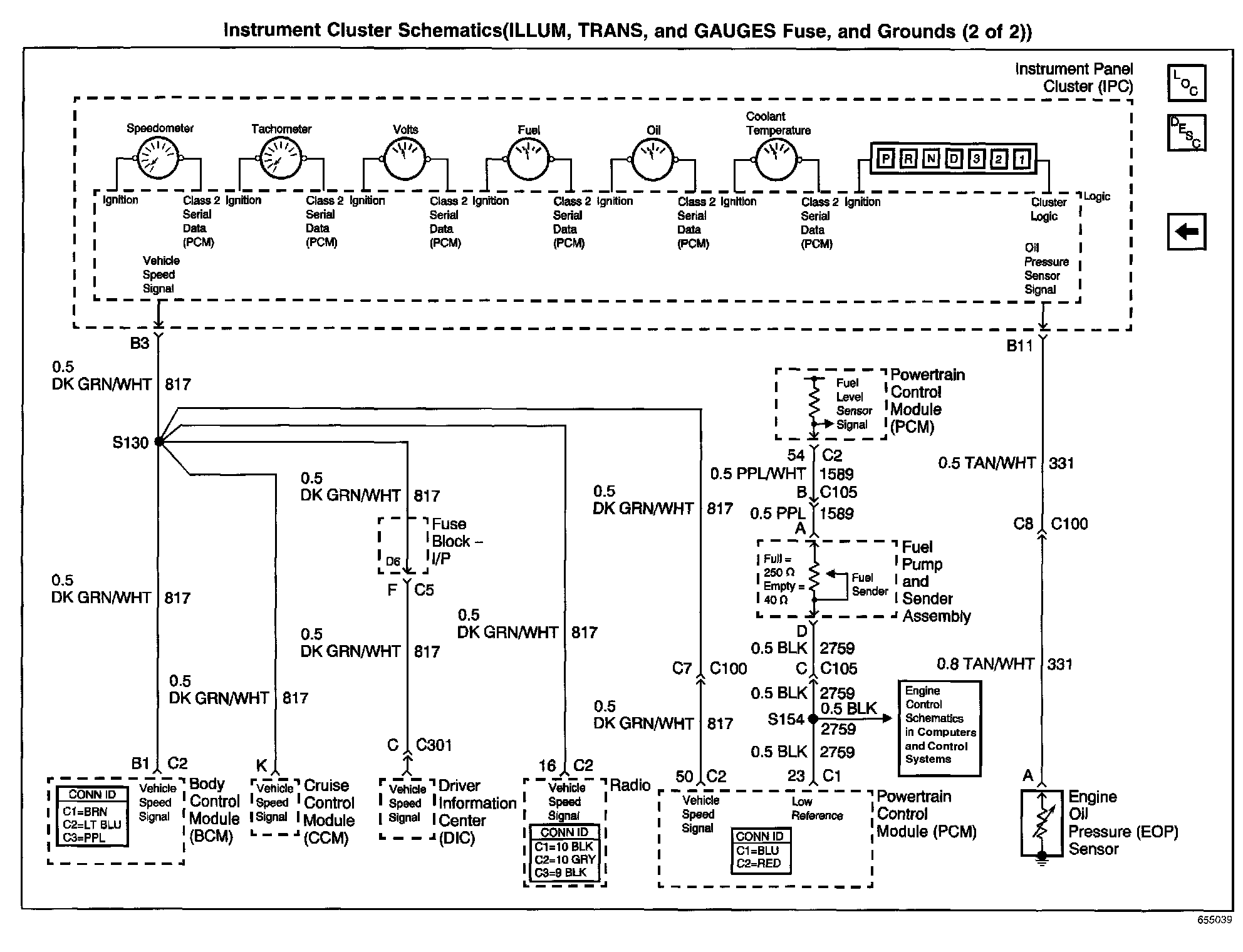

Instrument Cluster Schematics: ILLUM, TRANS, and GAUGES Fuse, and Grounds (Part 2 of 2):
