Turn Hazard Switch, and Vehicle Speed Signal

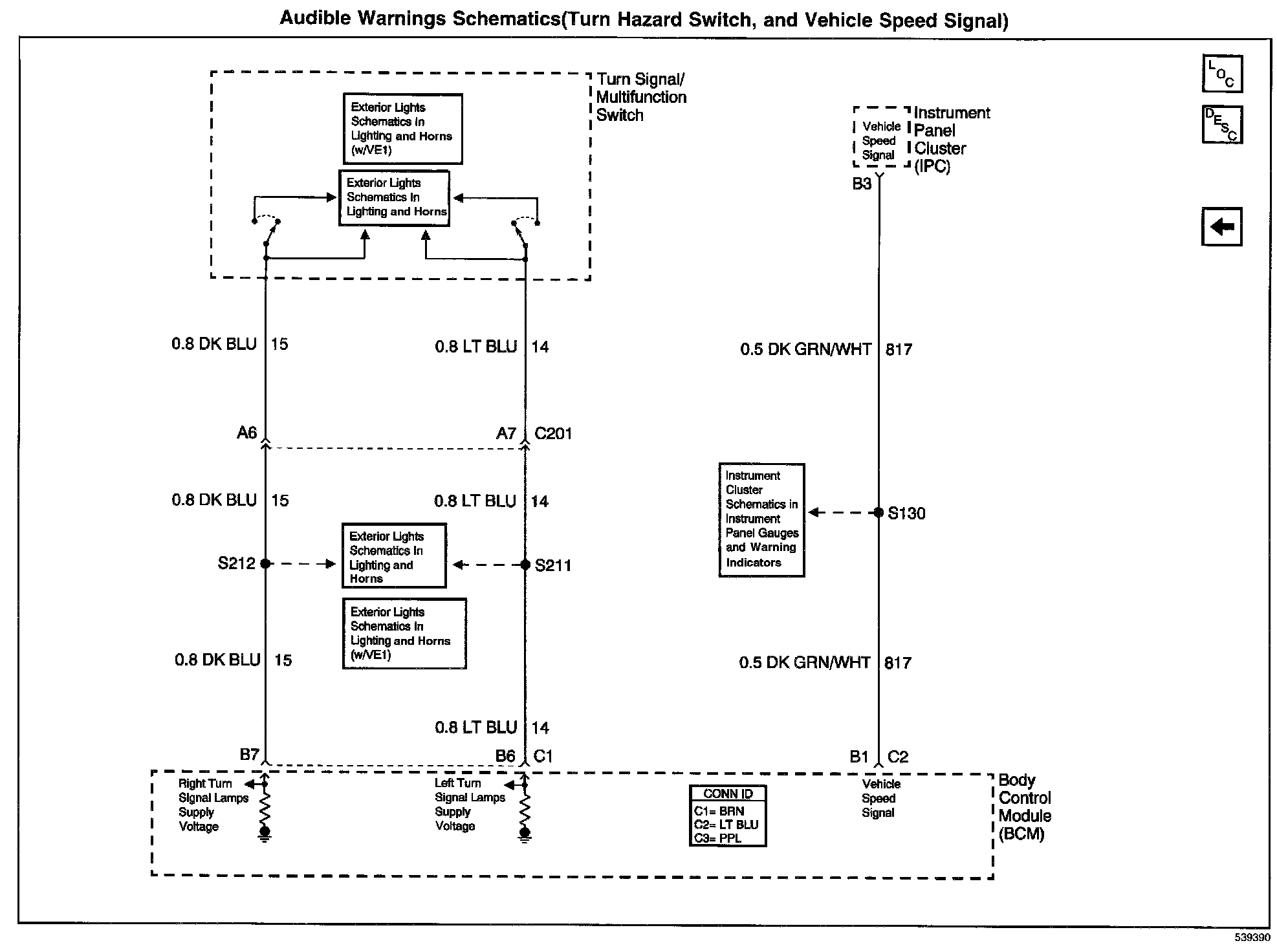

Audible Warnings Schematics: Turn Hazard Switch, and Vehicle Speed Signal:
