Power Seat Belt/Key-In Warning, and Door Jamb Switchs
Power Seat Belt/Key-In Warning, and Door Jamb Switchs

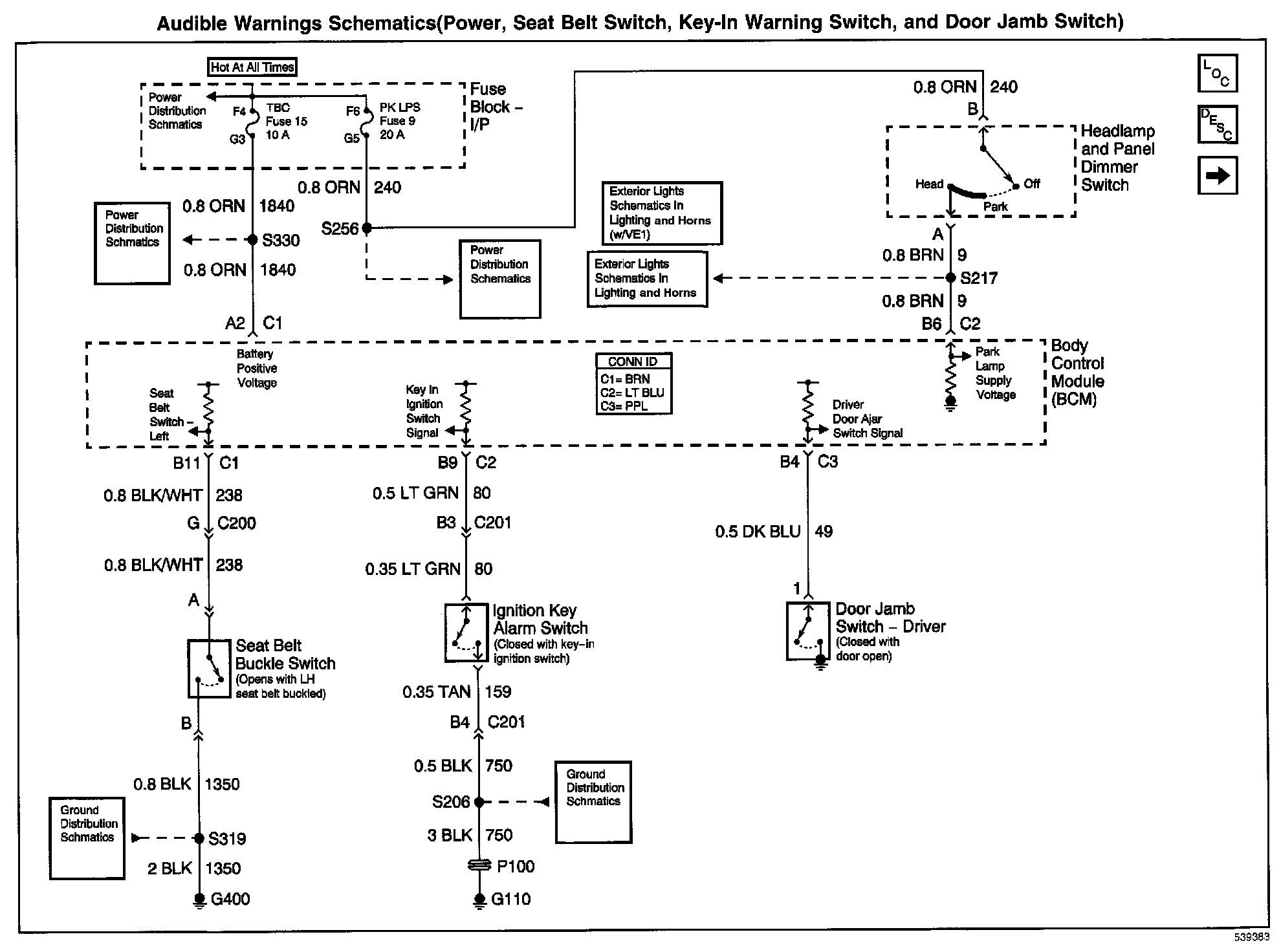

Audible Warnings Schematics: Power, Seat Belt Switch, Key-In Warning Switch, and Door Jamb Switch:
