Power Window Switch, Radio, and Overhead Console

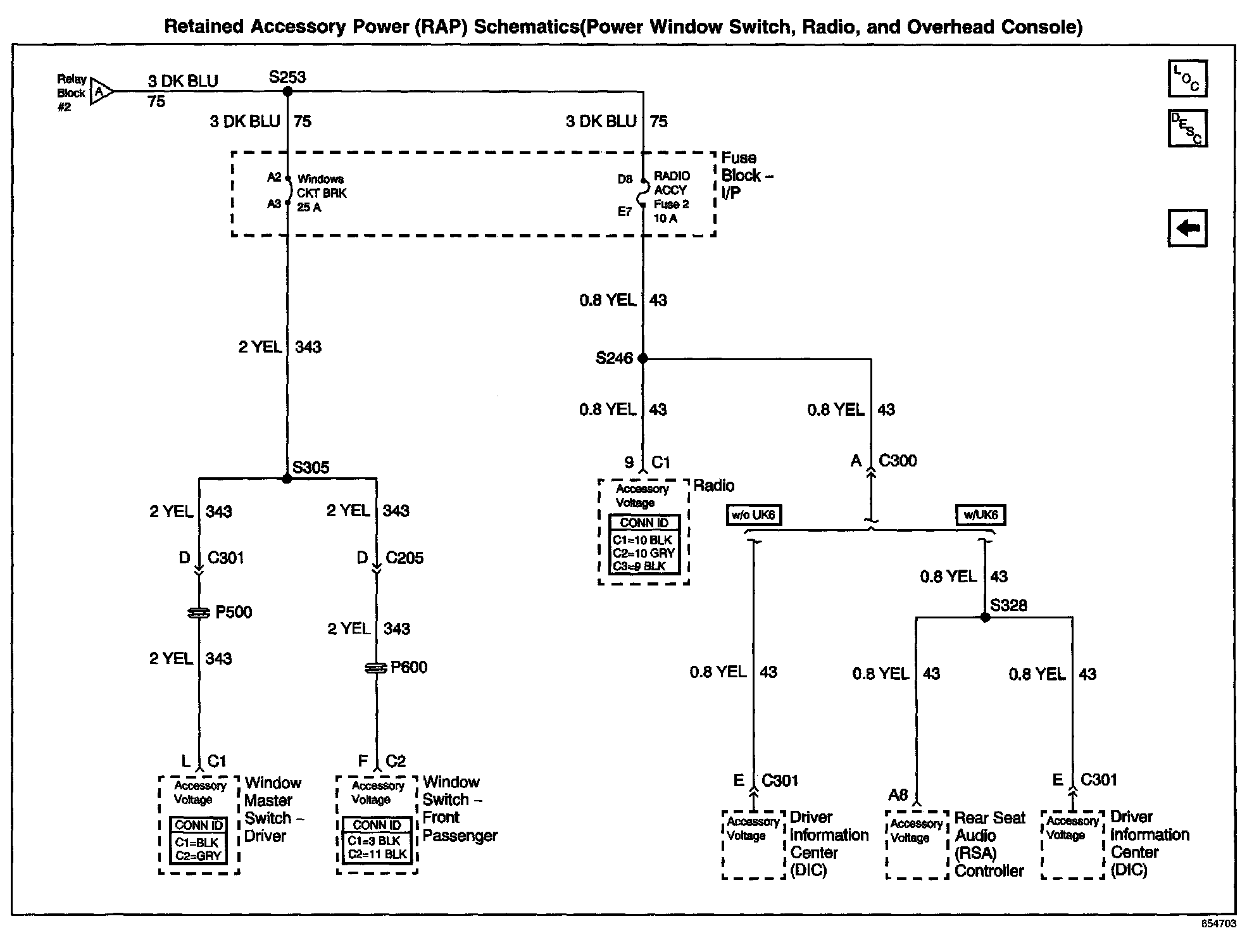

Retained Accessory Power (RAP) Schematics: Power Window Switch, Radio, and Overhead Console:
