Home >> GMC >> 2001 >> Safari Van 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Windshield Washer Control Module

Windshield Washer Control Module

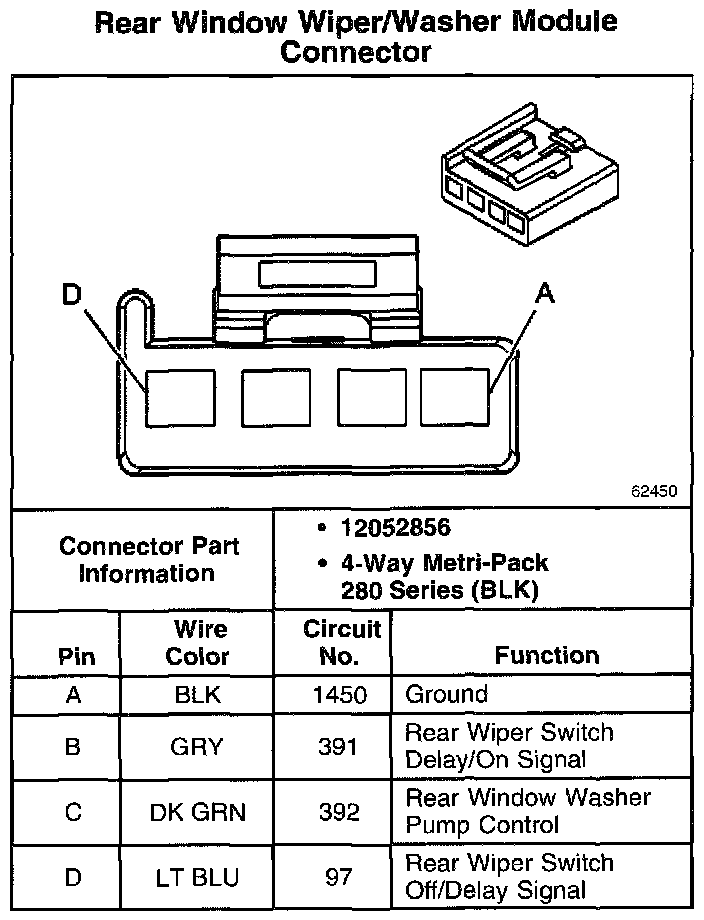

Rear Window Wiper/Washer Module Connector:
