Home >> GMC >> 2001 >> Safari Van 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio, Stereo, and Compact Disc >> Speaker >> RR Door Connector

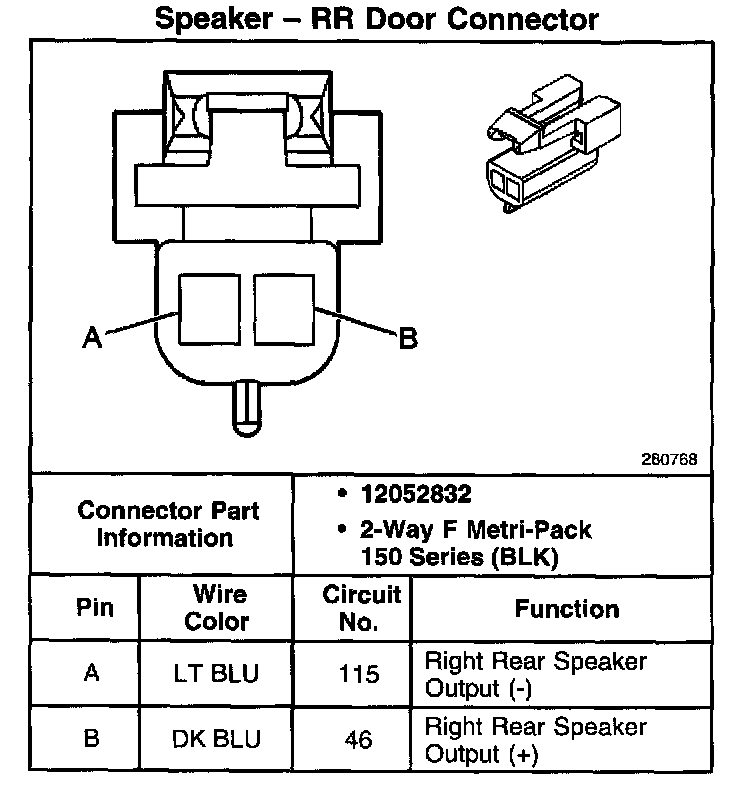

RR Door Connector

Speaker - RR Door Connector:
