Home >> GMC >> 2001 >> Safari Van 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio, Stereo, and Compact Disc >> Speaker >> RF Door Tweeter Connector

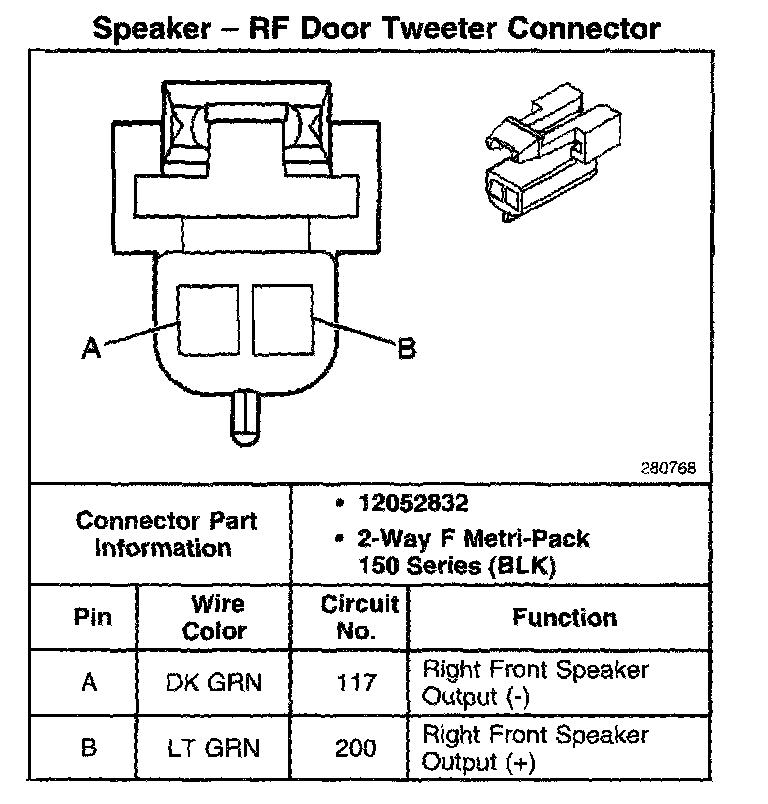

RF Door Tweeter Connector

Speaker - RF Door Tweeter Connector:
